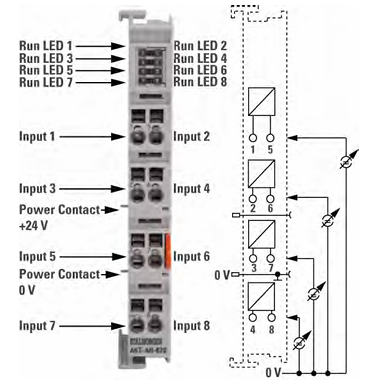

Kollmorgen AKT-AN-820-000 8-Channel Analog Input Terminal

The analog input terminals process signals in the range between

and 20 mA. The currentis digitised to a resolution of 12 bits andis

transmitted, in an electrically isolated form, to the higher-level

automation device. In the 4-channel Bus Terminal, the four inputsare

2-wire versions and have a common ground potential. The reference

ground of the inputs is the internal ground. The 8-channelvariant

combines all eight channels in one housing and is particularly suitable

for space-saving installation in control cabinets. Theuse of single

conductor connection technology enables the connection of

multi-channel sensor technolgy with minimum spacerequirements.

The reference ground for allinputs is the OV power contact. In both

Bus Terminals the power contacts are connectedthrough. Overload

is detected in both variants. The terminal status is relayed to the

controller via the standard-bus. The LEDs indicatethe data exchange

with the Bus Coupler as well as overload or wire breakage.
