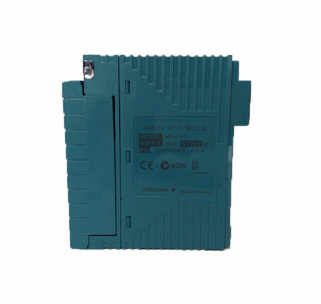

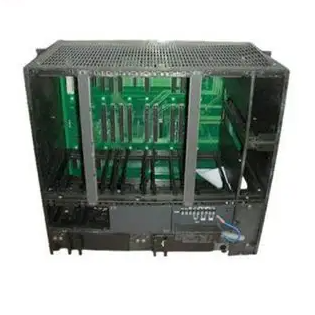

YOKOGAWA NFAI143-H00 analog I/O module

VDS and FCN/FCJ OPC server, FAST/TOOLS can

be connected up to 8 units in total. The FCN/FCJ

OPC server counts as 2 units because the DA server

and AE server operate. The FAST/TOOLS with

duplexed network counts as 2 units.

Development and Maintenance of FCN-500

A PC/AT-compatible computer is used for development

and maintenance of applications for an FCN-500.

Resource Configurator is a tool program to be installed

in the computer used for maintenance, and is used to

make the FCN-500 hardware settings.

The user can access FCN-500s via a Web browser

from a PC to make detailed settings for the network

and so on, and to perform maintenance operations

such as database backup and restoration.

Logic Designer is a tool program for the development

of control applications (IEC 61131-3) for an FCN-500.

Logic Designer requires a license to run.

 FEATURES

l High Performance

• Applicable to a variety of processes, from sequence

control processes to analog control processes.

• Intercommunication with other autonomous

controllers or other equipment for inter-linked control

actions, in addition to stand-alone operation.

• Using Versatile Data Server Software (VDS) or

SCADA Software (FAST/TOOLS) together allows

a system with enriched operation and monitoring

functions to be built up.

• An FCN/FCJ OPC server for Windows can be used

for accessing the data of an FCN/FCJ from an OPC

(OLE for Process Control) client on a PC.

• Duolet application is Java language application and

enables users to implement the following functions

on FCN-500; displaying images on a Web browser,

saving data files, transferring files using the FTP

protocol, sending/receiving e-mails and public

network connection using the PPP protocol.

FCN-500 is a controller consisting of CPU, I/O, and

other modules as necessary. It supports a variety of I/O

modules with excellent scalability. And, highly reliable

system can be configured with duplex power supply

modules, CPUs, control network system.

For hardware details, refer to FCN Autonomous

Controller Hardware (FCN-500), GS 34P02Q14-01E.
