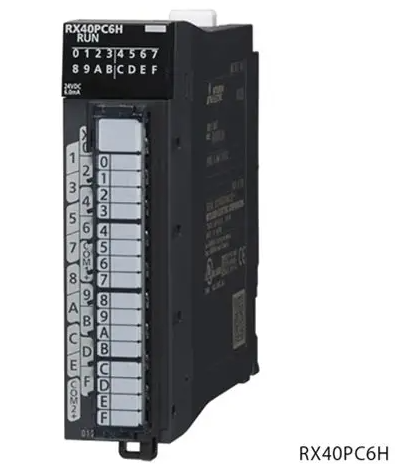

MITSUBISHI ELECTRIC RX40PC6H High-speed Digital I/O Modules

The MELSEC iQ-R Series lineup includes various

ultrahigh-speed digital I/O and analog I/O modules, making

them ideal for high-speed performance applications. Digital

input modules support response times from 1 μs and output

modules support response times of 2 μs. Analog input modules

support a fixed sampling cycle of 1 μs per channel and 5 μs

over all four channels.

Maintain manufacturing quality with

high-speed synchronization

Both digital and analog modules enable high-speed

synchronization across multiple modules. With analog

modules, machine performance can be improved by enabling

simultaneous sampling of five or more channels (simultaneous

conversion of four channels per module), realizing high

accuracy and faster control performance.

Reduce hardware costs by setting different

response times for each digital input point

A different response time can be set for each input point of the

high-speed input module. This functionality enables different

devices operating at different response speeds to be connected

to the same input module, helping to reduce the total cost as

less hardware is required.

Simple preventative maintenance utilizing

continuous logging

The analog module includes continuous logging that enables

the module to log contiguous data, such as from vibration

sensors on a motor. This data can then be analyzed, enabling

faults to be highlighted leading to the correct planning of

maintenance.

Improve performance of closed-loop control

The analog output module supports high-speed conversion of

1 μs improving output speed performance. This enables faster

response of a feedback control system, such as drive control

where speed is controlled by analog signals.

● Offers versatile expandability, allowing you to utilize existing personal

computer boards and GPU boards.

● Meets international standards for temperature, vibration, shock, and

electromagnetic compatibility, making it suitable for a wide range of industries.

● Runs Windows ® operating system with a 10-year support lifecycle.

● Includes MELSOFT VIXIO AI-based visual inspection software (free 6-month

development license) *2 for labor-saving and efficient traceability in visual

inspection processes.

● Comprehensive support for the entire system built with Mitsubishi Electric

products.

*2. Included only with MI2532-W; not included with MI2332-W.
