ABB REP3BHT300002R1 DI620 digital input 32 channels

Technical Description

Functional description

Functions of the machine terminal

The functions of REM 54_ machine terminal are categorized as:

• protection functions

• measurement functions

• control functions

• condition monitoring functions

• communication functions

• general functions

• standard functions

Benefits that add value

Get a drive solution that meets the requirements of your application and

ensures high productivity and the optimum performance of your operations.

Benefit from the built-in expertise of our medium voltage drives and take

your business forward with everything working like clockwork.

The S100 I/O process interface modules for Advant Controller 400 series process controllers come with connection units,

simplifying cable termination and keeping noise and destructive spikes away from the central electronics.

Control functions

The control functions are used to indicate the status of switching devices,

i.e. circuit breakers and disconnectors, and to execute open and close commands for controllable switching devices of the switchgear.

Furthermore, there are supplementary functions for control logic purposes, e.g. on/off switches,

MIMIC alarm LED control, numerical data for MIMIC and logic controlled control position selector.

The control functions configured with the Relay Configuration Tool can be associated with object status indicators that

are part of the MIMIC configuration picture displayed on the HMI.

The object status indicators are used to indicate the status of switching devices via the MIMIC picture and to control them locally.

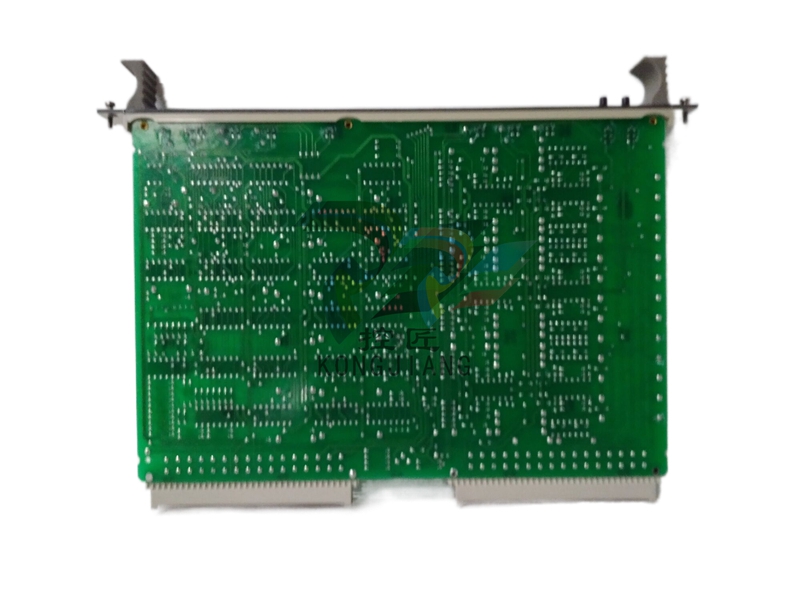

S600 I/O Digital Input Module. 32 channels, 24/48 V d.c.,

internal 48 V sensor power supply, opto-isolated, sequence of event capability, wire break supervision

Note! This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein

– EU DECLARATION OF CONFORMITY

Well-proven technology
