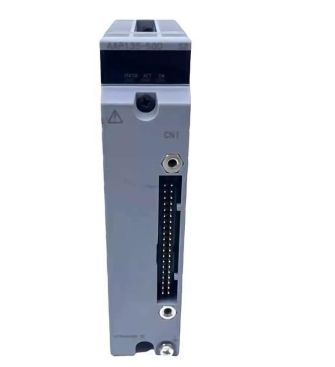

PM1*C Yokogawa CENTUM XL Control System Module

Building Automated Test System

Macro Programming

•  Build a simple auto-measurement system without an external

controller.

•  Easy to create test program by recording the user's actual key

strokes and parameter selections.

Fast remote Interfaces

•  GP-IB, RS-232. and Ethernet (10/100Base-T) interfaces

•  Improve the testing throughput of test systems by the fast

measurement, command processing, and data transfer speed.

•  SCPI compatible commands and AQ6317 Emulation Mode

•  LabVIEW® Driver available

Easy to Keep Accurate

Ambient condition change, vibration and shock to an optical precision

product, like an optical spectrum analyzer, will effect the optical

components, and eventually degrade optical performance. Using

standard functions, The AQ6370C can maintain its high optical

performance within a couple of minutes so that you can quickly start

a measurement.

Product Description

The YHC5150X is a premier intrinsically safe handheld communicator

designed for configuration and commissioning of HART-compliant field

instruments. As part of the Yokogawa FieldMate series ecosystem, it

provides advanced Device Description (DD) management and in-field

diagnostics without requiring a laptop in hazardous areas.

Powered by a 1 GHz microprocessor architecture, the YHC5150X delivers

fast navigation, responsive parameter editing, and efficient troubles

hooting. Its rugged industrial design ensures reliable operation in harsh

plant environments, making it ideal for process engineers and maintenance

technicians working in continuous operation facilities.

The device features a 4.3-inch high-contrast transflective display for

excellent readability under direct sunlight. A full 52-key QWERTY membrane

keypad combined with an integrated touchscreen allows flexible operation,

even when wearing protective gloves. Its optimized power management

system supports extended field use throughout long maintenance shifts.

AQ6370C’s overall high performance can cover not only

manufacturing of optical devices and optical transmission systems

but also research and development, and a variety of other applications.

•  Optical active devices

(Laser diode/Fiber laser/Optical amplifi er/Optical transceiver)

• Optical passive devices

(Filter/FBG/AWG/WSS/ROADM/Optical fi ber)

• Optical transmission equipment (DWDM, CWDM)

• Development support of Applied photonics equipment

World-class Optical Performance

• Wavelength range: 600 to 1700nm

• High wavelength accuracy: ±0.01nm

• High wavelength resolution: 0.02nm

• Wide dynamic range: 78dB typ.

• Wide level range: +20 to -90dBm

• Fast measurement: 0.2 sec. (100nm span)

• Applicable to single-mode and multimode fibers
