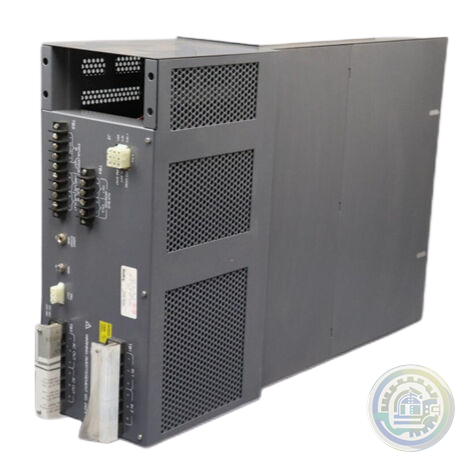

ABB IEPEP03 Power Entry Panel

Power Entry Panel Manufacturers ABB, Bailey Model(s)

ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90

Additional Information Power Entry Panel, can be set up for either 120 or 240 Vac. Includes AC Transfer Module and Bus Monitoring Module. No cables included.

Estimated Shipping Size Dimensions: 28.0" x 8.0" x 19.0" (71.1 cm x 20.3 cm x 48.3 cm)

Weight: 38 lbs 0.0 oz (17.2kg )

Tariff Code: 8538907080

Country of Origin: United States Ships from Webster NY, USA

Power Entry Panel

Protecting the integrity and confi dentiality of system data

The process and power industries face intensifying cyber

security risks. In order to increase stability, security

and robustness in its solutions, ABB has established an

independent Device Security Assurance Center (DSAC)

where cyber security robustness is tested as part of the

product development process. The DSAC test facility uses

state-of-the-art open source, commercial and proprietary

robustness and vulnerability analysis tools in its certification

testing. All Symphony Plus Ethernet-based devices -

including SD Series products such as the HPC800, and

CI850 - are continually tested at the DSAC center in different

configurations and with an explicit focus on operational

performance. This ensures that all Symphony Plus products

are robust, secure and of the highest quality.

Field device management

HART and PROFIBUS devices are fully integrated with

Symphony Plus, yielding benefits far beyond reduced

footprint and cable costs. The S+ Engineering tool suite

supports configuration, commissioning and maintenance of

HART and PROFIBUS devices using device type manager

(DTM) technology. For field devices that have conventional

device description files (GSD), a basic PROFIBUS DTM is

available to allow standardized configuration. HART devices

are integrated, configured and parameterized via standard

HART protocol without the need for additional tools by

using a standard HART DTM. The individual DTMs can be

accessed from Composer Field’s multiple data views, such

as the system or location overview and others. Composer

Field includes automatic net calculation and loading

of process items by using the device-specific channel

configuration generated from the DTM.
