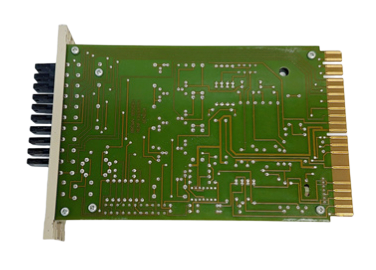

ABB 6231BP10910 Analog Output Module

The power converter modules DCS800-S have the protection class IP00 and are to be mounted in a cubicle or finger protected area.

There are different sizes (D1. D2. D3. D4. D5. D6. D7), graduated in terms of current and voltage ranges.

All units are equipped with the DCS800 Control Panel.

It can be snapped into place on the power converter module or installed in the switchgear cubicle door by means of amounting kit.

Accessories such as external fuses, line reactors etc. are also available, to complete the drive system.

All converter modules up to 525 V and 1000 A (D1...D4) are equipped with field exciters.

The power section of the converters is available as single  (2-Q) bridge or double (4-Q) bridge. 4-Q drives are required for regenerative breaking.

4-Q drives can be built by:

–Double (4-Q) armature bridge or –Single (2-Q) armature bridge plus a double (4-Q) field converter bridge

The bridge type has an influence on the maximum output voltage of the converter. See table below.

The ControlLogix controller is part of the Logix 5000™ family of controllers.

• ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, and over I/O links.

ControlLogix controllers can communicate over EtherNet/IP, ControlNet, DeviceNet, DH+™,

Remote I/O, and RS-232-C (DF1/DH-485 protocol) networks and many third-party process and device networks.

• The controller can be placed into any slot of a ControlLogix chassis and multiple controllers can be installed in the same chassis.

Multiple controllers in the same chassis communicate with each other over the backplane

(just as controllers can communicate over networks) but operate independently.

• To provide communication for a ControlLogix 5570 controller, install the appropriate communication interface module into the chassis.

ControlLogix 5580 controllers have a built-in EtherNet/IP port.

ControlLogix® digital I/O modules are input and output modules that provide

On/Off detection and actuation. By using the producer/consumer network

model, digital I/O modules can produce information when needed while

providing additional system functions.
