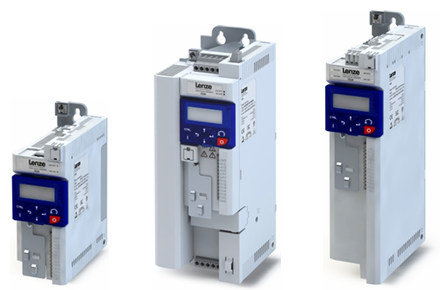

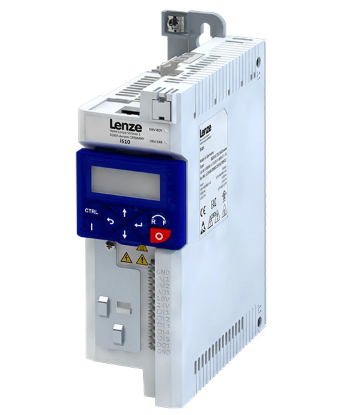

LENZE i510 cabinet frequency inverter

The i510 cabinet frequency inverter is a compact control cabinet device with scalable functionality.

It is versatile, reliable and easy to use.

The requirements of the Ecodesign Directive, Standard EN IEC 61800-9-2. are met.

Application areas: Conveyor drives, traveling drives, pumps, fans, agitators, ...

Highlights

• Space saving design: 2.26 in wide (up to 5 hp), 5.13 in deep (up to 15 hp), with

zero-clearance mounting

• Innovative interaction (e.g. over WiFi) makes new record-breaking commissioning

times and convenient diagnostics a reality

• Special user-friendliness

• Safety in the system does not begin with the drives first, but at the control level.

• With the c250-S safety controller, a complete automation solution is provided for

safety engineering and control and drive tasks. Topped with the safety I/O module,

all the safety aspects in the machine module can be evaluated.

• EtherCAT is used for data transfer.

Features

• Compact Controller c250-S for easy mounting using the DIN rail

• Directly stackable safety I/O module with integrated connection without

extra wiring

• Plug-in connections of the safety I/O module for quick set-up

• Portfolio expansion means reduction in machine components

• High-quality solution thanks to PL e/SIL 3

The machine module solution can really look that easy.

Simply expanding the modular system

• FAST machine module solutions are achieved these days with a controller

and the corresponding servo drives. This solution is now topped with

integration of the safety controller. Using the same network viaEtherCAT,

the system topography is the same.

• The safety controller can be parameterised via the PLC Designer engineering

tool, in parallel with the controller 3200 C and the servo inverter.

From drive-based safety to controller-based safety:

this new simplicity can be seen among other things in the noticeably reduced

amount of wiring. This is the result of directly interlinking the Lenze controllers

for safety and motion – in addition to ready-made software solutions from the

FAST Application Software Toolbox. Hence in practice, a FAST module can,

for instance, control the reduction in traversing speed while at the same time

the safety controller within the system can monitor the safe maximum speed.
