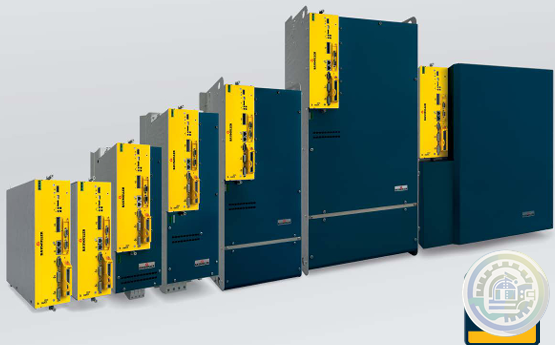

BAUMULLER b maXX 5500 – The servo drive for higher output ratings

The modular converters 5000 have been extended to mono units in the range 5500.

This covers power ratings of 10 to 315 kW and higher safety functions such as SLS

(safely limted speed) and SLP (safely limited position) can be integrated up to high

power ratings.

b maXX 5500 offers a performance range from 1.1 kW to 315 kW. All devices have

integrated rectifiers, DC link capacitors and inverters.

The b maXX 3300 servo converter was designed for small outputs of up to approx.

5 kW and is specially configured for operation with Baumüller servo motors of size

28-100 as well as disc and linear motors. Thanks to the consistent design of the

controller with a view to economy and compact construction, the b maXX 3300 is

just as suitable for applications in the handling or robotics sector as it is for

applications in the printing, textile and packaging industries.

High-quality servo-controller for small drives

The b maXX 3300 servo-controller is a high-quality servo-controller with integrated

position control for the small power range. The maXX 3300 features a compact,

space-saving design. The field-oriented regulation ensures an excellent smooth

running quality. The higher-level speed and position control ensures dynamic and

precise positioning. The b maXX 3300 is compatible with b maXX 5000 servo-

controllers in terms of handling, communication, parameter structure, main

functionality and operation. The b maXX 3300 is parameterized via ProDrive.

The highly dynamic control of the b maXX 3300 in conjunction with the highly

dynamic small servo motors of the DSD series increases the clock rate of the

application and thereby the production rate of machines and systems.

Thanks to the high clock frequency (16 kHz) of the actuating signals, the noise

emission of the machine and thus the burden on the environment is significantly

reduced.

Thanks to the consistent design of the controller with a view to economy and

compact construction, the b maXX 3300 is just as suitable for applications in

the handling or robotics sector as it is for applications in the printing, textile

and packaging industries. The servo-controller is specially designed for operation

with the DSD 28-100 servo motors and disc and linear motor series.

The highly dynamic control of the b maXX 3300 in conjunction with the highly

dynamic small servo motors of the DSD series increases the clock rate of the

application and thereby the production rate of machines and systems.

Thanks to the high clock frequency (16 kHz) of the IGBT gate control, the noise

emission of the machine and thus the burden on the environment is significantly

reduced.
