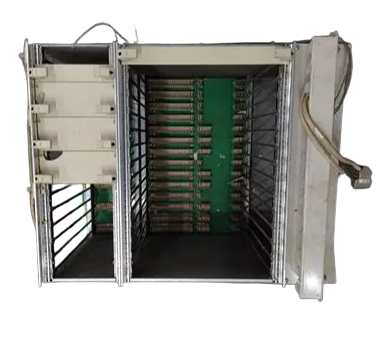

ABB UAC389AE01 HIEE300888R0001 Processor Module

Document conventions

A particular convention may not be used in this manual.

• Abbreviations and acronyms in this manual are spelled out in the glossary. The

glossary also contains definitions of important terms.

• Push-button navigation in the LHMI menu structure is presented by using the push-button icons.

To navigate between the options, use and .

• HMI menu paths are presented in bold.

Select Main menu/Settings.

• LHMI messages are shown in Courier font.

To save the changes in non-volatile memory, select Yes and press .

• Parameter names are shown in italics.

The function can be enabled and disabled with the Operation setting.

• Parameter values are indicated with quotation marks.

The corresponding parameter values are "On" and "Off".

• IED input/output messages and monitored data names are shown in Courier font.

When the function starts, the START output is set to TRUE.

The MService device implements an innovative approach to condition monitoring:

The supervision of the performance and health status of a MNS and MNS iS switchgear are made

possible with a small-scale and easy-to-use embedded industrial PC.

The MService implements the whole condition monitoring concept from collecting field level

real-time data to performing assessment algorithms.

Based on that, it is possible to work out a prognosis of developing situations and prompting the operator for action.

However, if the situation continues and results in a tripping or failure, the MService offers clear diagnosis for fast problem resolution.
