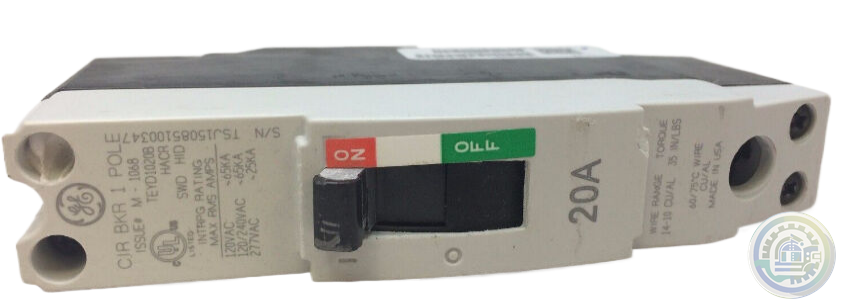

TEYD1020B | General Electric Molded Case Circuit Breaker

Product Description P/N: TEYD1020B Description / Specifications Description The TEYD1020B is a General Electric Molded Case Circuit Breaker from the TEYD Series, featuring a type TEYD design. It is a single pole (1P), single phase (1PH) circuit breaker with a current rating of 20A and a voltage rating of 480/277V. With a standard interrupting capacity of 25kA at 480V and operating temperature of 40掳C, it is designed for reliable performance in various electrical applications. Technical Specifications Brand GE Type Compact Voltage Rating 120/240/277/480 VAC, 125 VDC Amperage Rating 20 A Frequency Rating 50/60 Hz Interrupt Rating 65/25 kA Frame TEYD Trip Type LI/Non-Interchangeable Thermal Magnetic Number Of Poles 1 Phase 1 Actuator Type Handle Connection Type Saddle Clamp Wire Size 14 to 10 AWG Mounting Type Bolted-On Temperature Rating 40 deg C Dimensions 5-1/4 in H x 1 in W x 3-1/16 in D Material Plastic Information About TEYD1020B The TEYD1020B is a Molded Case Circuit Breaker manufactured by General Electric. It belongs to the TEYD Series and is of type TEYD.

It is a single pole (1P), single phase (1PH) circuit breaker with an amperage rating of 20A. The voltage rating for this breaker is 480/277V, with an interrupting capacity of 25kA at 480V, meeting standard interrupting capacity requirements. Operating within a temperature range of 40 degrees Celsius, it features a bolt-on mounting type and is equipped with a non-interchangeable trip mechanism. The trip functions include LI (Long-Time) and Instantaneous trip functionalities, ensuring efficient and reliable circuit protection. The TEYD1020B breaker is designed with load side lug terminals for ease of connection and installation. It operates based on a thermal magnetic principle, providing both thermal overload protection and magnetic short-circuit protection. Manufacturer information General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions. IQElectro is not an authorized distributor. QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply.IQElectro sells SURPLUS onlyand DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
