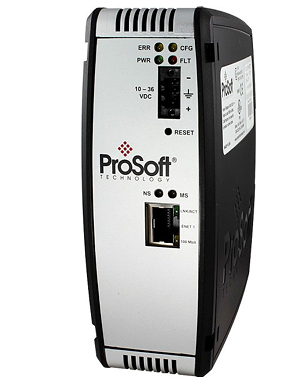

Prosoft PLX31-MBTCP-PND Modbus® TCP/IP to PROFINET® Device Gateway
❤ Add to collection

Prosoft PLX31-MBTCP-PND Modbus® TCP/IP to PROFINET® Device Gateway

+86-18144100983
kongjiangauto@163.com
wind, petroleum, chemical, natural gas, Marine, mining, aviation, electronics, steel, nuclear power, electric power, coking, air separation and so on
PLC, DCS, servo, analog, Ethernet, digital, redundant module, tension system, excitation, generator management, human-machine interface, detection card, sensor, AC drive, etc
U.S.＄9726.00
U.S.＄4325.00
Weight：4.000KG
Quantity：
(Inventory: 2)
Buy now
Add to cart
Product parameters
  • Tell:+86-18144100983
  • email:kongjiangauto@163.com
  • Application:wind/ petroleum/ chemical/ natural gas/ Marine/ mining/ aviation/ electronics/ steel/ nuclear power/ electric power/ coking/ air separation and so on
  • Series:PLC/ DCS/ servo/ analog/ Ethernet/ digital/ redundant module/ tension system/ excitation/ generator management/ human-machine interface/ detection card/ sensor/ AC drive/ etc
Feature

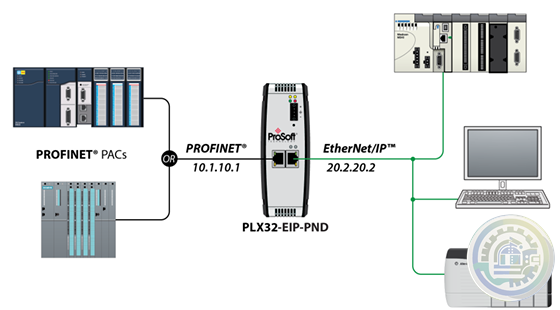

The EtherNet/IP to PROFINET device gateway offers bi-directional data

transfers between a PROFINET Controller and EtherNet/IP networks. The

PLX32-EIP-PND gateway is a stand-alone DIN-rail mounted unit that provides

two Ethernet ports, with each port using a different subnet.

The onboard SD Card slot (SD card optional) is used for storing configuration

files that can be used for recovery, transferring the configuration to another

gateway, or general configuration backup. The EtherNet/IP Driver uses Class 1

I/O connections or Class 3 Message instructions. The PROFINET driver

operates as a PROFINET Class A device.

Features

 ODVA Approved

 PROFINET v2 certification with PROFINET Class A compliance

 EtherNet/IP and PROFINET certifications ensure the device is compatible with their respective network

 Field-tested with multiple PROFINET controllers from multiple vendors

 Remotely view and diagnose EtherNet/IP and PROFINET networks

 Embedded EDS AOP provided to allow for seamless integration to Studio 5000 and RSLogix 5000

 Using EtherNet/IP I/O connections, no ladder programming is required

 Multiple I/O connections to allow for increased throughput

 Secure module configuration via module switch (v1.04 and greater)

 Up to 10.000 16-bit registers can be used to exchange large amounts of data
