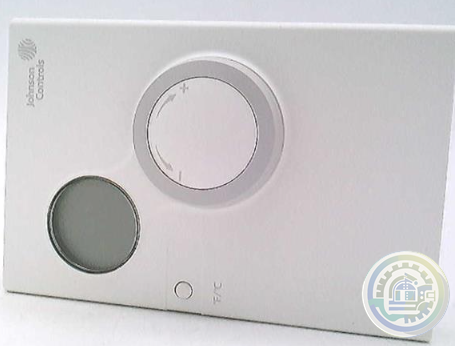

Johnson Controls NS-WALLPLATE-0 Network Sensor Wall Plate

Communications protocols

The CGM and CVM controllers can communicate using

BACnet MS/TP, N2. or wireless Zigbee. The controllers

auto-detect the protocol that is connected, which enables

the same controller to support multiple communication

protocols without the need to purchase a special model

per protocol, and without extra manual setup.

The XPM expansion modules can communicate using

BACnet MS/TP, or wireless Zigbee® using a ZFR/ZFR Pro

Wireless Field Bus Router (on the FC Bus only). By default,

the XPM expansion modules communicate using the

BACnet MS/TP protocol.

The CGM09090 and CGM04060 General Purpose

Application MS/TP Controllers (CGs) are equipment

controllers that run pre-engineered and user

programmable applications, and provide the inputs and

outputs required to monitor and control a wide variety of

HVAC and other facility equipment. CG series controllers

operate on an RS-485 BACnet® MS/TP Bus as BACnet

Advanced Application Controllers (B-AACs) and integrate

into Johnson Controls® and third-party BACnet systems.

CG series controllers include an integral real-time clock,

which enables the controllers to monitor and control

schedules, calendars, and trends, and operate for

extended periods as stand-alone controllers when offline

from the Facility Explorer® system network.

Network Diagram with Equipment Controllers

Integration to the Metasys system

supervisory devices

The CG and CV series equipment controllers are designed

to integrate seamlessly into the Metasys system by

connecting to, communicating with, and being supervised

by Metasys network engines (including SNE, SNC, NAE,

NIE, and NCE series network engines). This seamless

integration of equipment controllers with Metasys

network engines delivers coordinated, system-wide

control and enables building operators to monitor and

adjust equipment controllers from the Metasys system UI.

In addition, service personnel can view equipment

controller information locally through an optional local

controller display (MS-DIS1710-0) available for equipment

controllers, or through the optional Mobile Access Portal

(MAP) Gateway.

Johnson Controls DRP-24V48W1AZ (rev04) CliQ DIN Rail 24 VDC Power Supply with connecting cable

Johnson Controls MS-DIS1710-0 Local Controller Display

Johnson Controls MS-NAE551S-2 Secure NAE-S Network Automation Engine

Johnson Controls MS-NAE551S-702 Replacement secure NAE-S

Johnson Controls MS-NAESCBL-0 Diagnostic cable and non-metallic reset probe

Johnson Controls MS-FEC1611-1 B-ASC 10-Point Field Equipment Controller

Johnson Controls MS-BAT1010-0 Replacement data protection battery for secure NAE-S

Johnson Controls PAN-PWRSP-0 96 VA 120/24 VAC Power Assembly

Johnson Controls DIS1710 INSTALLATION INSTRUCTIONS MANUAL

Johnson Controls METASYS FEC2621 FIELD EQUIPMENT CONTROLLER MS-FEC2621-0

Johnson Controls FIELD EQUIPMENT CONTROLLER MS-FEC2611-0ET 24VAC REV

Johnson Controls Metasys NAE MS-NAE5510-3 Ver 10.0 Rev K Controller

Johnson Controls MS-NAE5510-ER2 Panel consisting of the Secure Network Automation Engine
