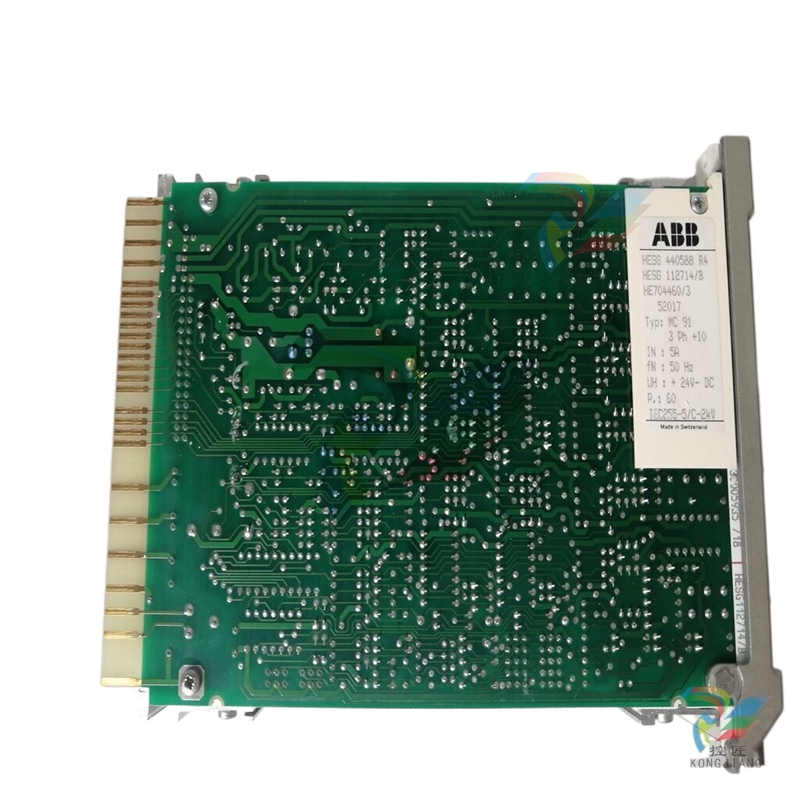

ABB MC91 HESG440588R4 HESG112714/B Industrial Automation Protection Module

The MService device implements an innovative approach to condition monitoring:

The supervision of the performance and health status of a MNS and MNS iS switchgear are made

possible with a small-scale and easy-to-use embedded industrial PC.

The MService implements the whole condition monitoring concept from collecting field level

real-time data to performing assessment algorithms.

Based on that, it is possible to work out a prognosis of developing situations and prompting the operator for action.

However, if the situation continues and results in a tripping or failure,

the MService offers clear diagnosis for fast problem resolution.

Customer benefits and savings

• Risk Mitigation: Transfer of risk from client to ABB for coordinating design interface of all elements in the package to form a single product solution.

• Reduced Client Resources: ABB being responsible for the scope of works described above reduces client manpower to engineer and manage the project.

• Predictable Delivery & Cost Schedule: As a majority of the work is performed off site,

the client is insulated from local labor shortages, environmental & industrial relations factors, granting fewer and shorter isolation possessions.

• Reduced Site Resources: Comprehensive FAT can be performed before delivery reducing site commissioning requirements.

The data communication properties include the following communication standards: SPA bus, LON bus, IEC 60870-5-103.

IEC 61850 via SPA-ZC 400. Profibus DPV1 via SPA-ZC 302.

DNP 3.0 and Modbus communication with higher level equipment.

Further, the LON communication together with the PLC functions minimizes the need for hardwiring between the feeder terminals.

ABB’s comprehensive service offering ensures life cycle support for medium voltage products

ranging from installation and commissioning, through condition monitoring and plant maintanace programs,

to decommissioning and recycling.

Our global network of service centers and experts help customers to optimize the performance of

their equipment without compromizing on reliablity and safetyDescription.
