Home ⊙ Product ⊙ Baldor KPD-TS05M-10 5.6" monochrome touch screen with serial interface
Current Location:

E-mail

Password
Register Forgot password?

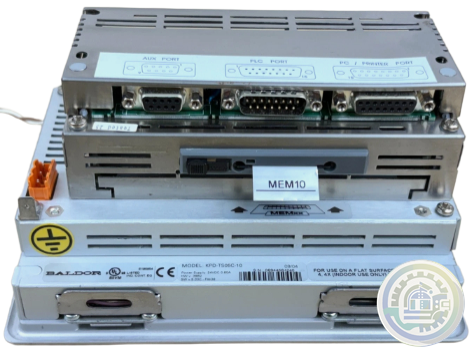

Baldor KPD-TS05M-10 5.6
❤ Add to collection

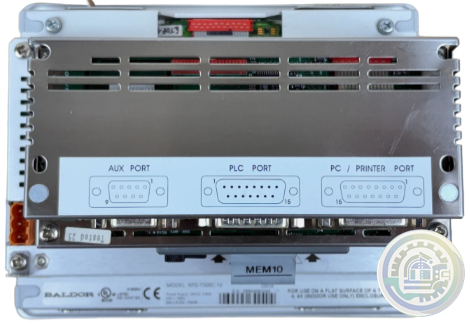

Baldor KPD-TS05M-10 5.6" monochrome touch screen with serial interface

+86-18144100983
kongjiangauto@163.com
wind, petroleum, chemical, natural gas, Marine, mining, aviation, electronics, steel, nuclear power, electric power, coking, air separation and so on
PLC, DCS, servo, analog, Ethernet, digital, redundant module, tension system, excitation, generator management, human-machine interface, detection card, sensor, AC drive, etc
U.S.＄9477.00
U.S.＄5727.00
Weight：3.600KG
Quantity：
(Inventory: 6)
Buy now
Add to cart
Product parameters
  • Tell:+86-18144100983
  • email:kongjiangauto@163.com
  • Application:wind/ petroleum/ chemical/ natural gas/ Marine/ mining/ aviation/ electronics/ steel/ nuclear power/ electric power/ coking/ air separation and so on
  • Series:PLC/ DCS/ servo/ analog/ Ethernet/ digital/ redundant module/ tension system/ excitation/ generator management/ human-machine interface/ detection card/ sensor/ AC drive/ etc
Feature

Graphical Touch Screens

Baldor’s range of touch screens provide a powerful yet cost effective

operator interface. The range starts with the entry level 3.8" 1/4 VGA

monochrome display through to the full color 12.1" TFT (800x600)

display for showing complex graphics.

The Designer software makes programming the graphic screens

simple. A library of over 500 symbols can be called upon to make

feature rich and easy to follow operator screens. The comprehensive

drawing and file import tools allow you to create your own library of

symbols making the screen layouts infinitely customizable.

Areas of the screen can be made into touch cells, responding to

human touch. Each touch cell can be programmed for different

actions including data entry, page change etc.

Text Displays

The Baldor text displays offer a simple graphics capability in addition

to displaying text of different sizes. Each panel supports a keypad for

data entry, plus a series of programmable macro keys. A keyboard

macro editor allows a single keypress to perform a number of

instructions without the need for programming. Functions can

include turning pages, setting parameters and turning on and off

LEDs.

In additional to displaying text, the LCD display can show bitmaps,

bar graphs, charts, trends and more. All are programmed in the easy

to use Designer software.

Slide in legends allow you to customize the programmable function

keys to suit the machine configuration.

KPD-KG420-20 4x20 character/graphic display, serial interface

KPD-KG420-30 4x20 character/graphic display, 12 function keys, serial interface

KPD-TS03M-10 3.9" monochrome touch screen with serial interface

KPD-TS05M-10 5.6" monochrome touch screen with serial interface

KPD-TS05C-30 5.6" color TFT touch screen with serial interface

KPD-TS05C-30E 5.6" color TFT touch screen with serial interface and Ethernet

KPD-TS10C-30E 10" color TFT touch screen with serial interface and Ethernet

KPD-TS12C-30E 12.1" color TFT touch screen with serial interface and Ethernet
