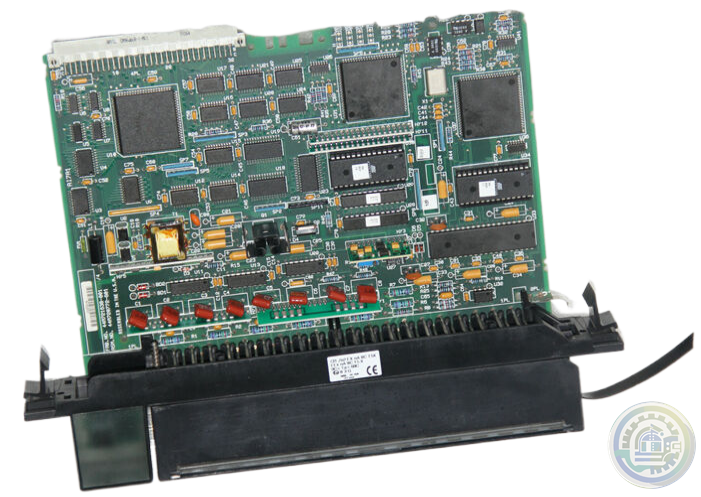

GE IC697ALG440 16-Channel Analog Input Expander Module

Alternate Phase Distance

Two independent phase distance elements provide time-delayed backup protection

for generator faults that are not cleared by the main system and generator protection.

This distance characteristic compensates for unit delta/shunt power transformers

located between the generator and the end of the protection zone.

Sensitive Directional Power

The 489 provides low forward and reverse power elements to prevent generator

movement from damaging the prime mover.

Each element has separate power pickup level and operating delay settings for alarms and trips.

Connectivities

• Connects up to 10 Modbus devices to a DeviceNet network

• Contains pre-configured memory maps for specific GE Multilin devices

• Supports DeviceNet “Adapter” functionality (Profile Number 12)

• Supports Explicit and all four types of I/O

messaging formats:- Polled- Change of State (COS) - Bit strobed - Cyclic

• Supports DeviceNet baud rates 125 Kbps, 250 Kbps and 500 Kbps

• Connects to DeviceNet network using 5-pin linear DeviceNet plug

• Acts as a master to Modbus RTU devices

• Supports Modbus baud rate of 1200bps to 57600bps

• Modbus interfaces supported: RS232. RS422 RS485

• Supports up to 50 Modbus Transactions

• DIN-rail mountable

• 1024 bytes of total data exchange- 512 bytes of data to Modbus devices- 512 bytes of data to DeviceNet master

• Configured using the EnerVista P485/D485 Setup Software

• Upload common configuration files to

multiple D485 devices

• 24 VDC input power

• CE, UL and cUL certified

The D485 Modbus to DeviceNet Converter acts as

a gateway between a Modbus RTU network and a

DeviceNet network. Integration of Modbus devices

into DeviceNet networks is enabled without loss

of functionality, control, and reliability, both when

retrofitting to existing equipment as well as when

setting up new installations. The D485 Modbus

to DeviceNet Converter is an external DIN-rail

mounted device which provides DeviceNet

network connectivity via a serial RS232/RS422/

RS485 interface. The D485 is programmed using

the P485/D485 configuration cable and the

EnerVista P485/D485 Setup Software.
