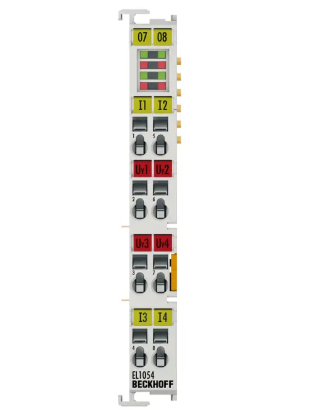

Beckhoff EL1054 | EtherCAT Terminal, 4-channel digital input, NAMUR

The EL1054 digital input terminal acquires signals from NAMUR field devices

according to EN 60947-5-6. The sensors are supplied with a voltage of 8.2 V

and return a diagnosable current signal. In this way, a wire breakage or

short-circuit can be detected in addition to the switching state.

The LEDs indicate signal or any error states, channel by channel.

The EL1034 digital input terminal acquires the binary 24 V DC control signals

from the process level and transmits them, in an electrically isolated form,

to the higher-level automation unit. The EtherCAT Terminal has four channels

that indicate their signal state via light emitting diodes.

Special features:

• input specification type 1

• low delay due to fast 10 µs input filter

• usable, for example, for inductive or capacitive sensors

• direct connection of four 2-wire sensors via additional 0 V connection points

• electrical isolation of individual channels, potential-free

The EL1002 digital input terminal acquires the binary 24 V control signals

from the process level and transmits them, in an electrically isolated form,

to the higher-level automation unit. The EtherCAT Terminal has two channels

that indicate their signal state via light emitting diodes.The EK9160 Coupler

provides direct connectivity for EtherCAT I/Os to the Internet of Things (IoT)

without the need for a control program.

It converts the E-bus signal representation to different IoT communication

protocols and enables in this way the simple and standardized integration

of I/O data into cloud-based communication and data services. Neither a

controller nor prior programming is necessary.

The I/O data transmission can be parameterized in a user-friendly configuration

dialog of the integrated web server providing access via any browser.

The required cloud services and security functions (authentication, encryption,

etc.) can also be conveniently configured using a browser. Following

parameterization, the coupler autonomously transmits the digital or analog

I/O values to the cloud service, including timestamp.The EK1914 EtherCAT

coupler combines the functionalities of the EK1100 EtherCAT coupler with

standard and safe digital I/Os. This results in a compact design that is especially

suitable for applications with a low number of I/Os.

The EK1914 has safety parameters to adapt the functionality specifically to the

respective safety-oriented requirements (e.g., 1 channel evaluation vs. 2-channel

evaluation of the inputs, testing of the individual channels).
