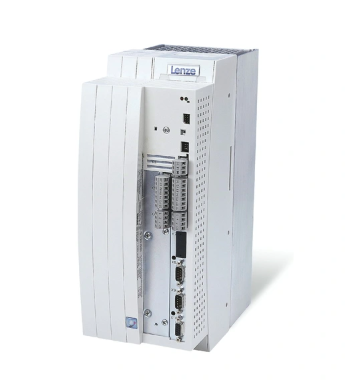

LENZE 9300 servo inverters

9300 vector frequency inverters

Frequency inverters for complex applications

The 9300 vector range of frequency inverters is also perfectly equipped

to handle complex applications, such as deployments in dosing, filling

and feedforward systems, as well as winding drives. The use of freely

interconnectable function blocks means that additional control and

regulation functions can also be performed – similarly to a PLC –

alongside the actual drive task. This lightens the load on higher-level

control systems, which in some cases can even be omitted altogether.

A convenient user interface simplifies handling. Predefined basic

configurations speed up the commissioning process. A comprehensive

standard equipment level and a portfolio of matched accessories,

such as communication modules, round off the program in the power

range from 0.37 to 90 kW.

9300 servo inverters

The intelligent drive for modular machines

The intelligent drives in the 9300 range are ideally suited to independently

control sub-processes within a machine. Starting from precustomised

standard applications, individual extensions are easy to implement with

the help of freely connectible function blocks – which reduces the load on

the control system and facilitates modular machine design.

The 9300 series servo inverters can be used universally in the power range

from 0.37 to 75 kW.

To comply with the most diverse of requirements in terms of the servo

technology, the following four versions are available:

• 9300 servo inverter

• 9300 servo position controller

• 9300 servo cam

• 9300 servo register controller

Using a uniform user interface reduces training requirements. Staff only

need to learn one system, which can then be used for all applications.

The pluggable AIF communication modules also allow easy integration

into common fieldbus systems. The devices are optionally available with

the integrated "safe torque off" function.

The MC series frequency inverters are built in rugged steel enclosures that

hold up to daily life on the factory floor.

Frequency Inverter enclosed V/f control (Constant Torque).

Output power: ¼ hp to 150 hp (0.18 to 110 kW).

This constant horsepower drive can be set up for simple applications requiring

ramped start, ramped stop and speed control to demanding applications that

require PID set-point control and many other functions.

Advantages:

Connections: start/stop, analog input, digital inputs and outputs (4/2)

Serial Communications: 2-Wire RS-485 Modbus RTU.

Packaged Dynamic brake option includes control and resistors in an easy to

implement solution for fast stopping or deceleration requirements
