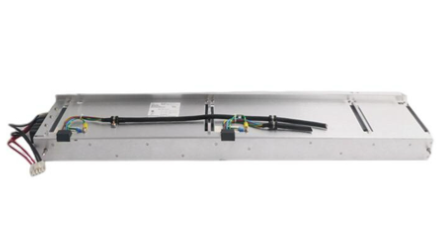

Honeywell 51196655-100 ACX633 Switchmode Power Supply

Honeywell Analytics’ one system solution to meet your safety requirements

Touchpoint  Plus provides a reliable safety solution for small-scale gas detection systems

across a wide range of applications and industries.

If you need to integrate your gas detection with a higher level management system,

the Modbus output option makes this straightforward.

As the heart of your gas detection system, Touchpoint Plus is designed to work with

Honeywell’s industry-leading gas detectors and drive actuators,

and audible and visual alarms to provide a complete end-to-end solution

that you can configure as your own.

The Model FS20X Multi-Spectrum Fire and Flame Detector is designed and Factory

Mutual approved for use in Class I, Division 1 and 2. Class II and Class III;

AEX d/Ex d IIC, and ATEX/IECEx Ex db IIC, Ex tb IIIC Hazardous Locations.

The FS20X Detector is available in copper-free Aluminum or in 316 Stainless Steel enclosure.

The FS20X Detector electro-optical electronics module (puck) is enclosed in a

replaceable black, hard anodized aluminum puck that provides superior ruggedness,

handling, ease of installation,and protection against EMI/RFI.

The Model FS20X™ Detector senses the Ultraviolet and WideBand IR™ radiant energy

of blackbody particulate and molecular emissions generated by both hydrocarbon

and non hydrocarbon flames and fires.  The WideBand spectral radiant energy

wavelengths sensed by the Quad (4) sensors span approximately 0.185 to 0.26

microns and 0.4 microns to 3.5microns for the FS20X Detector.

FS20X Detector

Shown with Copper Free Aluminum Housing

The field connections feature two (2) connector choices  for the installer:

1. A removable ten (10) pin screw terminal connector (J2) for hardwired relay applications.

2. A removable six (6) pin screw terminal connector (J1) for analog output or RS-485 Digital

Communication applications.

The removable connectors provide quicker installation and allows the Detector enclosure

to be installed prior to the Detector Module (puck).
