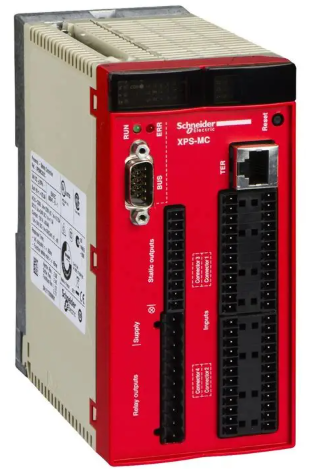

XPSMC32ZC - Schneider Electric - Safety Controller, Preventa™

Discrete monobloc TBX modules (IP20)

General

Discrete monobloc TBX modules (IP20) consist of either 16 discrete 24 V DC inputs, or 16 discrete

0.5 A transistor outputs, protected against overload and short-circuits, or 16 relay outputs. They

cannot be extended.

The Fipio connection point address assignment is set by 8 dip-switches (the 3 most significant dip

switches are not set), allowing up to 31 monobloc modules to be connected to the bus; Address 0

is reserved for the PLC (see Premium and Atrium Using EcoStruxure™ Control Expert, Fipio Bus,

Setup Manual). A display block indicates locally the status of the module and its inputs or outputs.

At a Glance

EXNEnergyEfficient Transformer Family

Square D transformers manufactured by Schneider Electric™ are optimized for

performance, including the following components:

• Coil—Designed to reduce the losses with customized wire configurations used

exclusively by Schneider Electric. Computer-controlled winding equipment

minimizes variability during the winding process. Aluminum conductors are

standard with copper conductors available as a factory option.

• Insulation System—The system consists of a conductor wrap or coating, layer

insulation, air gap spacing, and varnish material. The system is UL listed for a

specific maximum temperature for average temperature rise, hot spot, and

ambient temperature. Schneider Electric’s EXN family of transformers have a

428°F (220°C) insulation system, with an average temperature rise maximum of

302°F (150°C).

• Core—EXNTransformers are designed with high-grade grain oriented, non

aging silicon steel laminations with high magnetic permeability, low hysteresis,

and low eddy current losses. The computer-aided process allows the design to

keep the magnetic flux densities well below the saturation point. The laminations

are carefully and evenly stacked via distributive gap laminations, then clamped

together to ensure an efficient magnetic circuit while providing a quiet quality

offering of low voltage transformers.

• Terminals—Sized to allow the lugs to align with all corresponding Schneider

Electric equipment (such as circuit breakers, switches, panelboards,

switchboards, etc.). The terminal positioning separates the Primary and

Secondary terminals and meets the National Electrical Code® (NEC®) minimum

wire bending requirements. Lugs are not shipped with the transformer. This

allows the installer the flexibility to order what is needed to meet any distribution

system requirements. NOTE: Both mechanical and compression lug kits are

available from Schneider Electric.
