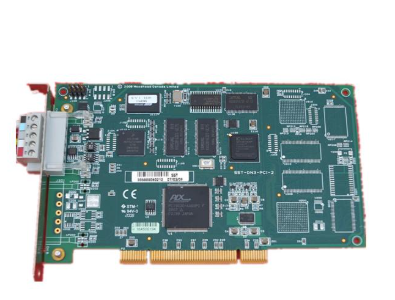

SST SST-DN3-PCI-2 DSQC658 DeviceNet Communication Interface Board

The card has an onboard Intel i960 processor with 512 Kbytes of local RAM.

The card has an additional 256 Kbytes of RAM that is shared with the host in

16 Kbyte pages. The host determines which 16 Kbyte page of this shared

RAM is mapped into the host memory by writing to a register on the card.

This block of memory contains all the tables and buffers that are used to pass

information between the interface card and the application software running

in the host computer. This approach makes for a fast and simple connection

between host application and card software. The host computer uses the

loader program included on the distribution disk to load a software module

into card memory.

In addition, the card has 512 Kbytes of sectored flash memory, for storage of

programs and configuration data. The host computer uses the utility included

on the distribution disk to store a software module into flash memory.

ProfiBus configuration information may also be stored in flash.

Reference Documents

For information on ProfiBus, refer to one of the following:

• ProfiBus standard DIN 19 245 parts 1. 2 and 3. Part 1 describes the

low level protocol and electrical characteristics, part 2 describes

FMS, part 3 describes DP

• European standard EN 50170

• ET 200 Distributed I/O System Manual, 6ES5 998-3ES22

Related Products

SST has the following related ProfiBus products:

• 5136-PFB-104. a 104 version of the 5136-PFB-ISA

• 5136-PFB-VME, a VME version of the 5136-PFB-ISA, which uses

the same memory map

• 5136-PBMS, a Multi-slave ISA card, allowing 1 to 125 possible DP

slave stations to be emulated or monitored on one physical Profibus connection

• 5136-PFB-PCI, a PCI version of the 5136-PFB104

• 5136-PFB-STD, a STD-32 version of the 5136-PFB-ISA

Warranty

SST guarantees that all new products are free of defects in material and

workmanship when applied in the manner for which they were intended and

according to SST’s published information on proper installation.

The Warranty period for the 5136-PFB-ISA is 10 years from the date of shipment.

SST will repair or replace, at our option, all products returned freight prepaid

which prove, upon examination, to be within the Warranty definitions and time period.

The Warranty does not cover costs of installation, removal or damage to

user’s property or any contingent expenses or consequential damages.

Maximum liability of SST is the cost of the product(s).
