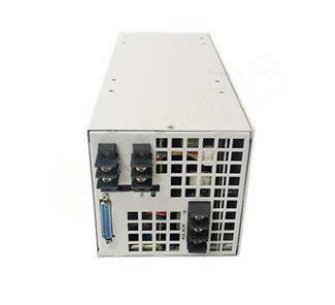

Pioneer Magnetics PM3328B-6-1-3-E POWER SUPPLY

Pioneer's introduces a new breed of High Efficiency Mid Voltage PFC Models

thatprovide full output power with Single or Three Phase AC Input.

Designed to supportboth standalone and parallel configurations, these models

are configured in standard Non-Plug and Hot Plug I/O interfaces.

The Premium Quality front ends are rugged, reliable,designed for high

performance and come in the traditional 5" x 5" package.

With powerdensity up to 25.8watts/in', these units are featured with

internal forced air-cooling andbuilt-in protection from electrical over-loads.

A single module provides continuous full power over operating temperatures

of 0°C to+50°C, from a Single or Three Phase AC Input line.

KEY FEATURES OF TRUE HOT PLUG

♦The guarantee of practically unlimited freedom from shut down.  A single

Pioneer power supply has a DMTBF of about ½ million hours.  Redundancy

gives a System DMTBF of over 100 million hours or 10.000 years.

♦A Redundant System (Each supply can carry the full load, or share the load

with a second or third supply).

♦No Switches or Circuit Breakers on the Input or Output side.

♦No deviation or loss of Output Bus Voltage during insertion or removal of units.

♦Zero Down Time.

♦A special customized design combination of Pioneer Magnetics’ Hot Plug Power

Supply and  Elcon Top or Lower Drawer Connector.

♦High Power Density to 21watts/in3

♦Pioneer Magnetics’ True Hot Plug Power System eliminates down time by

providing glitch-free, continuous operation for critical systems that must not

fail.  A standard line of high reliability switching power supplies is combined

with an industry standard 19" or 23" rack to create an advanced hot plug

system.

♦True Hot Plug eliminates all switches and breakers.  The system never shuts

down.  Less than 10 seconds is required to remove and replace a supply.

Power supplies can be swapped at full system power by simply pulling any

unit out of the rack and plugging in a replacement.

♦With a common 5" x 5" cross-section, Pioneer power supplies are available

from 1kW Watts to 8.1kW. Standard output voltages are 12VDC to 60VDC.

All supplies offer Power Factor Correction to 99.9% in Single Phase AC

input or 95% in Three Phase AC input.  Built-in single wire paralleling gives

excellent load division among supplies, regardless of the number of active

supplies.  Load is automatically distributed as supplies are removed or added.

Wireless (Droop) current sharing provides greater reliability.

♦The PM1450 rack series offers unusual flexibility and capacity, while

providing a complete power system solution.  Up to three 5" x 5" supplies are

housed in a 19" rack, and up to four supplies in the 23" rack.  This means that

four 8100-watt supplies can provide 32.4kW of power in a single 23" rack.

Stacking up five shelves can supply 162kW Watts of redundant power in just

31.5" of rack height.  Custom system expansion and future upgrade capacity

are readily available.
