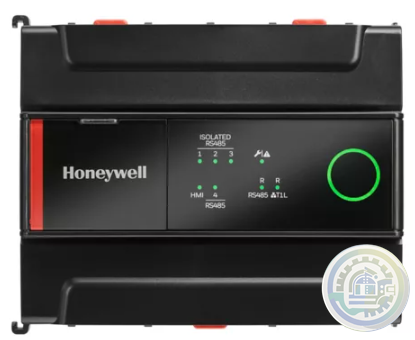

Honeywell PEC8445-PB1-SM programmable unitary controller

The programmable unitary controller expansion module supports Ethernet communication network

controller, and is ued to expand system capacity, to meet the management requirements of more

input/output devices,greatly improve system efficiency, and better protect users' overall investment.

The family-based system design enables the expansion module and controller to be freely

programmable with the same programming tools and flexibly and widely applied to the control

ofintelligent building equipment accordingly.

The PUC16000-EM2 and PUC00016-EM2 expansion modules are designed for the full life cycle of

intelligent building automation system, including the design phase, installation and commissioning

phase, and post-maintenance phase, to ensure optimal support for each link and achieve efficient

operation and long-term stability of the entire system.

The PUC16000-EM2 universal input expansion module has a 16-bit resolution and provides a higher

monitoring accuracy to ensure detailed and accurate system response.

The design of PUC16000-EM2 and PUC00016-EM2 expansion modules covers the maintenance and

update requirements of existing building automation systems. The appearance design is more compact

to adapt to existing control cabinets or other installation environments. The color identification of wiring

terminals and clear indicator light design aim to simplify thecommissioning and installation process.

At the same time, a more reasonable interface alocation ensures the resource utilization of building

automation system.

The PRO3200 professional series family of access control modules is designed for high density installations.

Supporting up to 16 readers per enclosure and 32 readers per intelligent controller along with up to

100.000 card capacity provides a combination of small installation footprint and superior cost per door ratio.

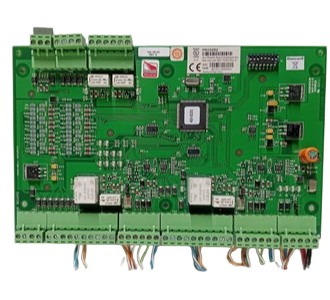

The PRO22R1 provides I/O support for one card access reader, while the PRO32R2 supports two card access

readers. Both interface with the intelligent control module (PRO32IC). In the event that communication to the

intelligent control module is lost, the card access readers can be individually configured to allow entrance

based on security needs. This customization allows for a door to be configured as locked, unlocked,

or access only via valid facility code.

The PRO32OUT interfaces with the intelligent control module (PRO32IC) providing up to 12 or 16.

Form C, 12 VDC, 2A relay output controls depending if the board is rack or tile mounted and power fail and

panel tamper when tile mounted. Relays may be used for elevator control, status annunciation and for

general facility control, such as door monitoring.

The PRO32IN interfaces with the intelligent control module (PRO32IC) providing 16 supervised alarm

inputs and a dedicated power fail and panel tamper when tile mounted. An analog to digital converter

samples the input values and the digitized result is filtered and processed. Filter parameters are configurable

for each input point, resulting in the ability to specify a custom End-Of-Line (EOL) resistance value, sensitivity

range and timing parameter. The PRO3200 Series of access modules are designed to accommodate various

mounting options. Units can be mounted in a rack configuration (PRO22ENC1. PRO22ENC2 and PRO22ENC5)

when space is limited, or in a tile-mount configuration (PRO22ENC3).

• The PRO22ENC1 is a wall-mounted enclosuree rack uni

• The PRO22ENC2 is a 19" rack-mounted enclosuree rack uni

• The PRO22ENC5 is a rack unit which fits inside a customer’s enclosure
