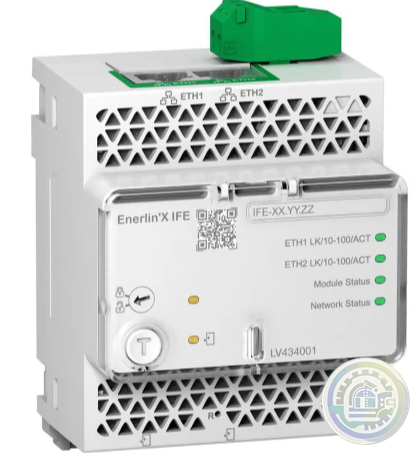

Square D LV434001 ~Schneider Electric LV434001 IFE Ethernet interface, Enerlin'X

The Square D™Distribution Transformer is designed to supply power throughout the

building. The transformer permits the use of multiple voltages in the design of the

system.

Someadvantages to designing a system with low voltage transformers:

• Distributes a voltage higher than required by the load to limit wire losses and

voltage drop

• Addition of source impedance to the system, reducing common overcurrent at

normal voltages

• Mitigates harmonics through an internal magnetic circuit

• Allows system grounding closer to the load, reducing capacitive noise

• Canbedesignedfor any output voltage that is required.

Afew disadvantages to designing a system with low voltage distribution transformers:

• Reducesoverall efficiency of the system due to internal losses within the

transformer

• Addedheattothe building if installed indoors and in the HVAC system.

The impact on the efficiency of the system and the concerns for improvements in the

market for energy consumption have led to low voltage distribution transformers being

regulated through the Energy Policy and Conservation Act (United States) and

Natural Resources (Canada).

This product is part of the Modicon X80 range, a common platform of modules

for Modicon M580 and M340 Programmable Automation Controllers (PAC).

This power supply module has a primary voltage of 100V to 240V AC.

It is a power supply module with a secondary power of 40W at 24V DC,

a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W.

This product is robust, high quality and based on the latest innovative technology.

It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective

earth for electrical connection.

Advanced diagnostics available via networks are temperature sensing, redundancy test,

uptime duration, redundancy information and remaining lifetime.

It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications.

This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL.

It meets EN 61131-2. EN 61000-6-4.

EN 61000-6-2 and EN 61010-2-201 standards.

This product is compatible with all backplane.

Modicon X80 consists in a compatible modules common platform that reduce maintenance

and training costs with same spare parts in stock, and unique training for different Programmable

Automation Controllers (PAC).
