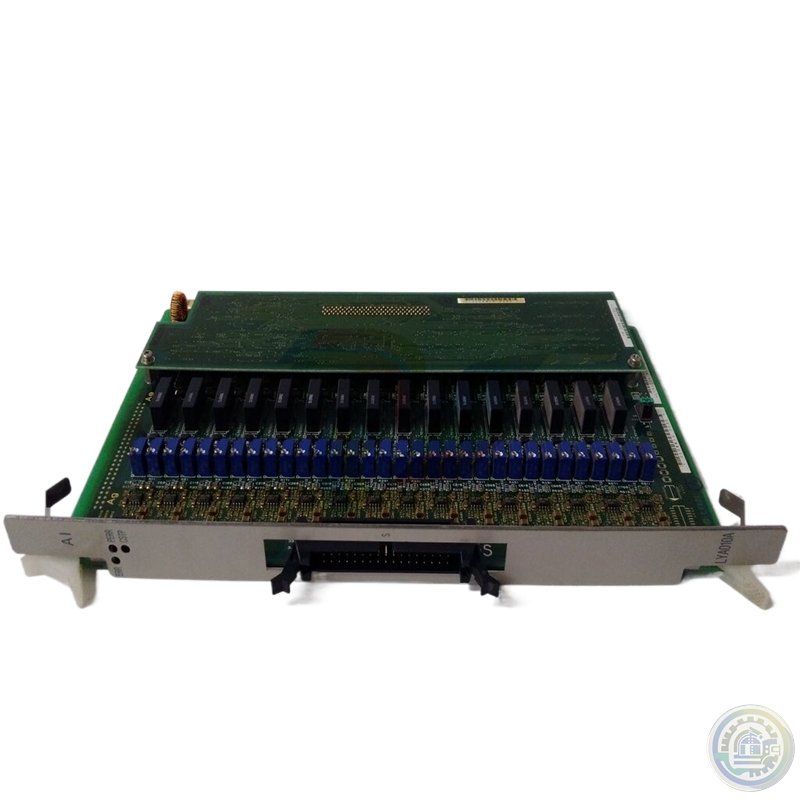

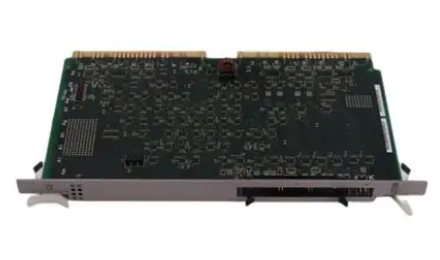

HITACHI LCE250B Input-output module

The fully redundant network element supports all SDH-traffic protection schemes

including 2/4-fibre MS-Spring. All optical ports are XFP / SFP based.

Fully integrated and managed boosters / preamplifiers / equalizers enable highly

flexible and reliable long-haul connections, without the need for additional external

devices. The robust mechanical and EMC-design including the distributed power

supply concept of FOX515H are optimized to cope with harsh environments which

are typical for utility applications. The mechanical, electrical and EMC / safety

performance of FOX515H is fully type-tested by an independent, certified Swiss

Test-lab. Most interfaces are provided with multirate SFP/XFP cages enabling each

individual port to have a different configuration with a wide variety of optical

wave-lengths for WDM, connectors and available ranges.

Additional benefits:

• Cost-efficient solution with a comprehensive feature set ideal for the first mile and access applications

• Stepwise introduction of Ethernet/MPLS-TP based applications in operational networks

• Secured data traffic in packet-switched networks

• Reliable data transport under any network circumstance

• Time and phase synchronization through the WAN

• Utility-grade design with fanless operation for deployment in harsh environments

• Fully interoperable with FOX family

Features

• Full support for native Ethernet and MPLS-TP

• Full synchronization solution according to IEEE1588v2 / SyncE

• Different types of clock in/out

• Complete circuit emulation solutions based on SAToP

• L2 based secured transmission on at least two trunk lines (authentication & full/partial encryption)

• MTBF > 20 years

• High-temperature temperature

• Flexible connectivity:

8x GBE ports (4 el. + 4 SFP & 4 el. wherefrom two with PoE highly desirable (2x 15W))

4x E1 ports

4x 64 kbit/s

4x RS-232 / RS485

ToD, BITS, 1 PPS, 1.5/2/10MHz Sync Interfaces

Alarm and management interfaces

• Redundant power supply (-48VDC)

• Combination of MPLS-TP (network side) and traditional interfaces (user side) in one device
