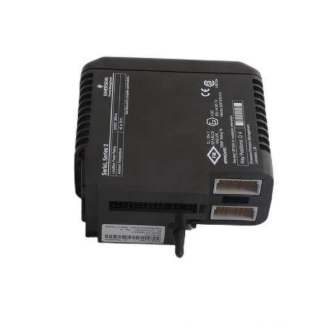

EMERSON KJ3002X1-BF1 12P1732X042 Analog Input Card RTD

The DeltaV™ S-series hardware takes the proven DeltaV

hardware to a new level of robustness and ease of use.

Assembly is faster and power distribution is easier, with fewer

connections using the integrated field power distribution and

increased capacity of I/O bus power.

The modular design allows you to purchase only what you need

with the ability to expand online later simply by adding the

power/controller and I/O carriers are modular. Purchase only

what you need but be assured that as your system grows you

can add plug-and-play carriers—Easy!

AMS Asset Monitor manages pervasive sensing while providing prediction,

protection and edge process monitoring capabilities, mounting at the asset to

reduce cabling requirements and installation costs. It accommodates up to

12 CHARMs including Vibration CHARMs as well as DeltaV CHARMs for process inputs.

AMS Asset Monitor features powerful out-of-the-box software functionality via

web browser for analysis, reporting, and alerting. This web-based thin client interface

features an internal Logic Studio with pre-programmed application solutions for

easy-to-understand analysis and alert reporting, and its Asset Studio interface delivers

asset information to the user’s mobile device or desktop thin client.

Carriers mount to standard t-type DIN rail with latches that

require no tools for quick installation. The latches can be

released using a blade screw driver. Simply snap the carrier

to the rail and slide adjacent carriers together to engage the

bus connector.

Allows you to expand online. Additional 8-wide carriers may

be added online as desired. Bus extenders provide dual cabling

for robustness, allowing up to 8 I/O carriers for a total of 64

simplex cards or 32 redundant cards.

Integrated power distribution. Controller and I/O interface

power distribution is integrated into the carriers to reduce and

simplify power and grounding. I/O Carriers have an integrated

shield ground bar to isolate and drain field noise away from

system power. They also provide an integrated redundant 24V

DC bussed field power distribution to reduce installation wiring

and provide fused, isolated power to each I/O interface, using

Power Buss Plugs. Alternatively, the I/O carriers can be ordered

with Power Terminal Plugs to bring dedicated power to each

card, which can be either 24V DC or 120/230V AC. Power Buss

Plugs and Power Terminal Plugs can be mixed on one

I/O Carrier.

A single Power Terminal Plug will come with any 120V AC DI

or 120/230V AC DO card.
