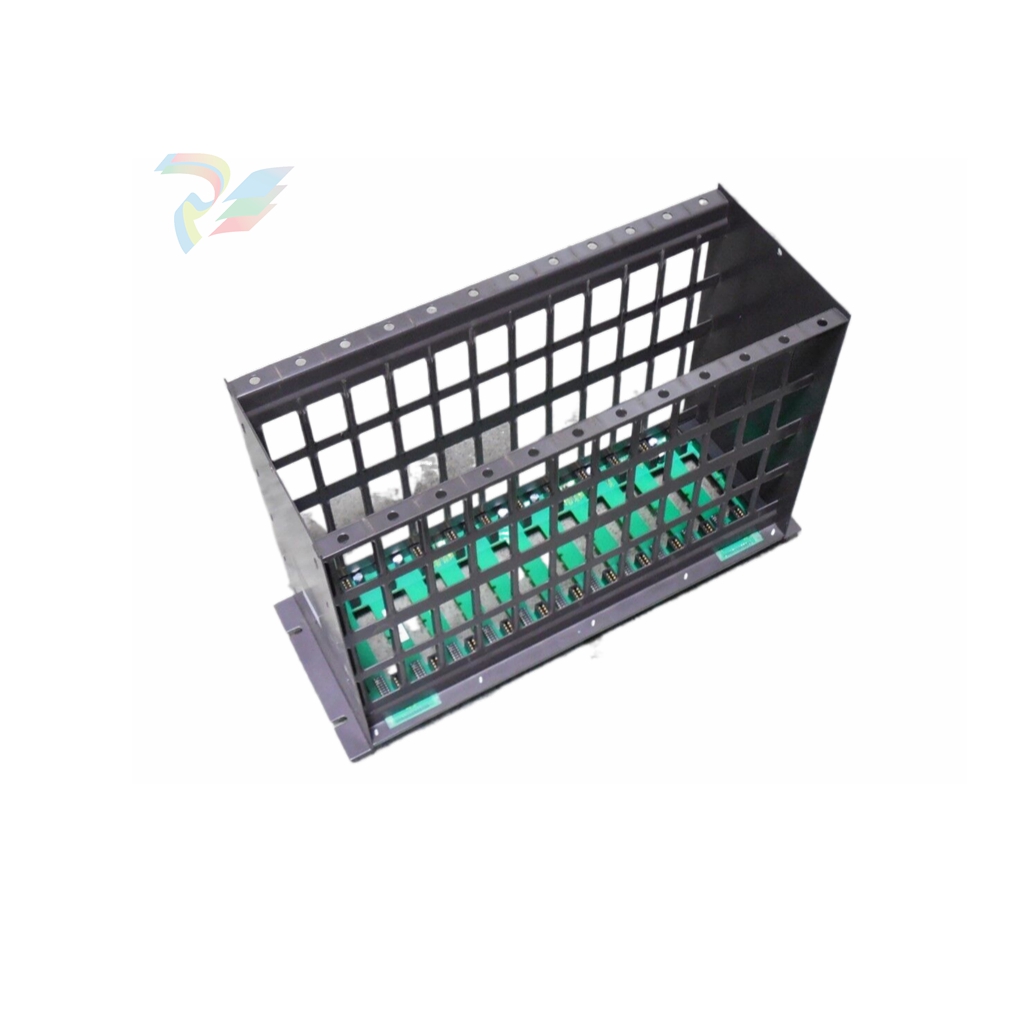

ABB IEMMU21 Module Mounting Unit

IEMMU21 Module Mounting Unit Manufacturers ABB, Bailey Model(s)

ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90

Additional Information Field power supply, 120VAC, 47-63 Hz, 250 VA

Estimated Shipping Size Dimensions: 14.0" x 2.0" x 7.0" (35.6 cm x 5.1 cm x 17.8 cm)

Weight: 2 lbs 8.0 oz (1.1kg )

Tariff Code: 8538907080

Country of Origin: United States Ships from Webster NY, USA

IEMMU21 Module Mounting Unit

Symphony Plus Control & I/O BRC410

ƒ Performance increase depends on specific

function blocks used, but in general

performance of latest module (BRC410)

compared with older modules:

ƒ ~ 10x vs. MFP01/02/11/12

ƒ ~ 4x vs. BRC100/200

ƒ Enhanced On-Line Configuration provided

by BRC410

ƒ BRC410 also provides ModBus TCP

ƒ BRC410 support 30,000 block addresses

and 4,000 Modbus TCP/IP points

ƒ Infi90 Modulebus support*

ƒ Downloadable firmware

Features and benefits

Termination for up to eight (8) analog I/O process signals within a horizontal row.

All SD I/O modules & bases of all types (Singular or Redundant) AND (Compact or Full-size), are

100% fully compatible with each other. Thus, Singular & Redundant, Compact or Full-size I/O

modules can be mounted within a single, common HN800 I/O bus.

Optional mechanical keying can be implemented to prevent insertion of the wrong I/O module type.

Latching device on the base locks the base into position on DIN-Rail.

Industry standard 35-mm DIN rail, Horizontal row mounting.
