Home ⊙ Product ⊙ ABB IGBT MODULE KIT FS450R12KE3/AGDR-71C S 68569354
Current Location:

E-mail

Password
Register Forgot password?

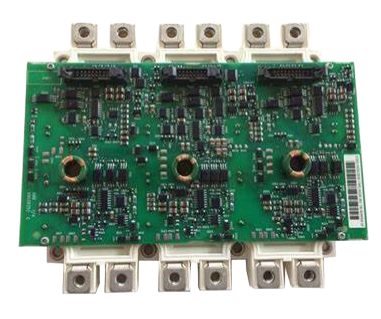

ABB IGBT MODULE KIT FS450R12KE3/AGDR-71C S 68569354
❤ Add to collection

ABB IGBT MODULE KIT FS450R12KE3/AGDR-71C S 68569354

+86-18144100983
kongjiangauto@163.com
wind, petroleum, chemical, natural gas, Marine, mining, aviation, electronics, steel, nuclear power, electric power, coking, air separation and so on
PLC, DCS, servo, analog, Ethernet, digital, redundant module, tension system, excitation, generator management, human-machine interface, detection card, sensor, AC drive, etc
U.S.＄8335.00
U.S.＄4912.00
Weight：3.600KG
Quantity：
(Inventory: 6)
Buy now
Add to cart
Product parameters
  • Tell:+86-18144100983
  • email:kongjiangauto@163.com
  • Application:wind/ petroleum/ chemical/ natural gas/ Marine/ mining/ aviation/ electronics/ steel/ nuclear power/ electric power/ coking/ air separation and so on
  • Series:PLC/ DCS/ servo/ analog/ Ethernet/ digital/ redundant module/ tension system/ excitation/ generator management/ human-machine interface/ detection card/ sensor/ AC drive/ etc
Feature

Overview

TIM foils or otherwise known as graphite sheet have been introduced in use in ACS800 R7i &

R8i industrial air-cooled modules as part of normal continuous improvements in the ACS800

product family. Benefits of using TIM foils in comparison to thermal grease are easier installa

tion and more durable heat transferring properties for longer periods of time. Durability par

ticularly improved in a cyclic application.

Where and how to use

TIM foils are used to transfer the heat generated in the IGBT’s to the heatsink. Full instruc

tions on how to install TIM foils is described in document delivered with TIM IGBT spare part

kits. In R8i module it’s possible to use a mix of IGBT’s with thermal grease and TIM foils. In

parallel connected R8i modules it’s also possible to use a mix of modules using TIM foils and

thermal grease.

New ACS800 R7i & R8i industrial air-cooled modules have been built using TIM foils since

1.10.2022. when ordering the module through BOL Drives Configurator. Current industrial air

cooled ACS800 R7i & R8i module fixed codes are available until 31.12.2022 and are delivered

with the thermal grease. All industrial air-cooled ACS800 R7i & R8i module orders will be avail

able only through BOL Drives Configurator starting 1.1.2023.

NOTE: Spare part wind specific modules with fixed codes will continue to be available and are

delivered with thermal grease and the wind specific DSW module repairs and other services

continue to use thermal grease until further notice.

All industrial air-cooled ACS800 R7i & R8i module repairs in Helsinki DSW are done with TIM

foil. DSW: s global implementation date for TIM foil is 1.11.2022.

All spare part IGBT kits for R7i & R8i have been available with TIM foils since 1.10.2022

IGBT MODULE KIT     FS450R12KE3/AGDR-61C S TIM FOIL SP       3AXD50000951369

IGBT MODULE KIT     FS300R17KE3/AGDR-66C S TIM FOIL SP       3AXD50000951376

IGBT MODULE KIT     FS300R12KE3/AGDR-62C S TIM FOIL SP       3AXD50000951383

IGBT MODULE KIT     FS450R17KE3/AGDR-61C S TIM FOIL SP       3AXD50000951390

IGBT MODULE KIT     FS225R12KE3/AGDR-71C S TIM FOIL SP       3AXD50000951406

IGBT MODULE KIT     FS300R12KE3/AGDR-72C S TIM FOIL SP       3AXD50000951628

IGBT MODULE KIT     FS450R12KE3/AGDR-71C S TIM FOIL SP       3AXD50000951635

IGBT MODULE KIT     FS225R17KE3/AGDR-76C S TIM FOIL SP       3AXD50000951642

IGBT MODULE KIT     FS300R17KE3/AGDR-76C S TIM FOIL SP       3AXD50000951659

IGBT MODULE KIT     FS450R17KE3/AGDR-71C S TIM FOIL SP       3AXD50000951666
