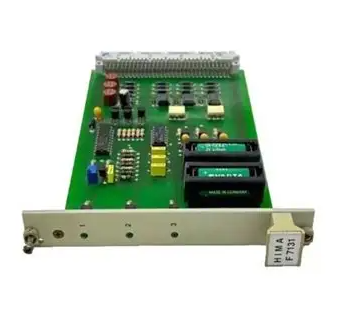

HIMA F 7131 Power Supply Monitoring F7131

HIQuad X is a programmable electronic safety system made by HIMA.

The flexible and scalable system family is a further development of HIQuad,

which has been in use within various applications in the process industries

for over 30 years.

The modernization combines tried-and-tested HIQuad I/O technology with

the high-availability and high-performance HIMax system technology.

HIQuad X is programmable with SILworX, the HIMA engineering tool.

HIQuad X safety systems are installed if restrictive safety requirements must

be fulfilled – without any compromises on system availability.

The safety PLC can be used on a centralized as well as decentralized basis.

A huge variety of I/O modules can be used – including intrinsically safe

SIL 3 modules.

Typical Applications

• Safety functions for

•  de-energize to trip

•  energize to trip

• Continuous and batch plants

• Burner and boiler protection

• Oil and gas pipelines

• Ships and offshore platforms

• etc.

HIQuad X System Benefits

• One common engineering platform

• Higher performance

• Enhanced reload functions

• Comprehensive communication options

• Safe communication between HIMA systems

• Implementation of the proven HIMA security concept

Modernization Benefits

• Shorter turnaround times for modernization

• Less modernization effort compared to new installation

• No changes of I/O modules including field wiring

Technical Highlights

• Two systems: H51X and H41X

• Common usage of the same modules for H51X and H41X

• Supports 24 existing HIQuad I/O modules

• Per H51X system up to 16 I/O extension racks with up to 256 I/O modules

• Per H41X system with up to one I/O extension rack with up to 28 I/O modules

• Flexible I/O architecture mono and redundant loops can be mixed, which reduces footprint

• Reload of application, hardware and communication

• Reduced cycle times

• Faster REAL calculation

• Freedom of interference between F-CPU 01 and I/O modules

• Cross connection between modules increases system availability

• Multitasking with up to 32 application programs

• Improved diagnosis for faster maintenance and troubleshooting

• Improved haptics

• Extended system bus

• Better EMC stability
