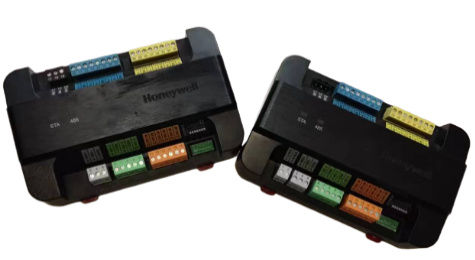

Honeywell DOP 09436601 Measurex PLC Module

The PRO4200 professional series family of access control modules is designed

for high density installations and can be managed through WIN-PAK®

integrated security suite for more advanced features such as Video integration,

advance reporting, rules and photo badging, elevator control, touch-less access

and mobile credential management.

Features & Benefits:

• Modular design fits a wide variety of applications

• Up to 9 modules, power supply and battery can be accommodated by the

PRO22ENC1. PRO22ENC2 and PRO22ENC5 (no battery) enclosures

• User programmable relay outputs allow for specific control needs

• User programmable alarm inputs offer flexible system configuration and control

• RS485 communication to all modules

• Analog to digital converter technology provides digital filtering and input conditioning

• Dedicated cabinet tamper and power monitor inputs

• Supports the choice of normally open, normally closed, supervised,

and non-supervised circuits

• Supports a wide range of reader technologies including OSDP and Wiegand

• System off-line modes customizable per reader include secured access,

locked (no access), and unlocked (full access)

• Supports multiple reader and card formats for maximum flexibility and security options

• Operating modes includes locked, unlocked, secure access, card only, card and PIN,

card or PIN and PIN only

• Any combination of 16 downstream I/0 or readers modules may be connected to the

PRO42IC RS485 ports. 4.000 ft (1.250 m) total bus length per port

• Supports over 50.000 transaction buffer

Alarms

Up to four electromechanical alarm relays are available to activate external equipment

when preset alarm setpoints are reached. Each of the four alarms can be set to monitor

two independent setpoints. Each alarm setpoint can be either high or low alarm. The

alarm type can be selected to be either of the inputs, the Process Variable, Deviation,

Output, Shed from communications, PV rate of change, or to alarm on manual mode

activation or a Current Output Open failure. It can also be used as an On or Off event at

the beginning or end of a Ramp/Soak segment. An individual alarm hysteresis setting is

provided for each relay and these are configurable from 0 to 100% of range.

 Alarms can be configured as latching or non-latching. continued

 Alarm blocking is also available which allows start-up without alarm energized
