Beckhoff C6525-0070 | Fanless built-in Industrial PC

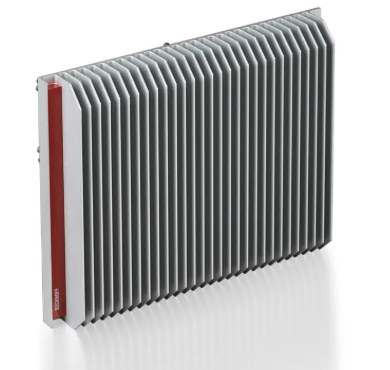

The C65xx Industrial PC series is designed to be installed in the panels of the control cabinet or in the rear panel of a control

housing or console housing. The heat sink of the Industrial PC is fed to the outside through a suitable cut-out in the control

cabinet or housing panel. Power dissipation from the processor and chipset takes place directly to ambient. Integrated seals

provide for an IP65 closure. This enables high thermal stability and at the same time fanless operation. Industrial PCs of type

C65xx can hence be constructed completely without rotating parts.

Industrial design

Scalable performance

Industrial PCs from this series, combined with the Beckhoff Control Panels as an operating unit, produce a powerful control

platform for machine construction and plant engineering – in particular with the TwinCAT automation software running on

Windows 10 IoT Enterprise.

Central EtherCAT controller

Due to the two independent Ethernet interfaces, the C6515 and C6525 Industrial PCs are ideally suited for use as the compact

central unit of an EtherCAT controller. Two hard disks, two SSDs or two CFast cards can be mirrored with the on-board SATA

RAID 1 controller. If a RAID drive fails, the system continues to operate. The defective data carrier can be replaced while

operation continues and the mirroring can be repeated.

Flexible expansion options

The C6515 and C6525 built-in PCs can be expanded by two additional PCIe® module slots. The hood on the inside is

manufactured 27 mm deeper for PCIe® modules. The module slots can be populated by Beckhoff PCIe® modules, for

example by the FC9062 dual-gigabit Ethernet module. The module slots also enable the use of fieldbus cards such as the

FC3161.

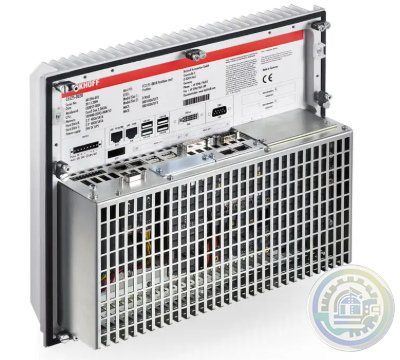

The C6525 built-in PCs can be expanded by two slots for standard PC plug-in cards. They accept market-standard PC plug-in

cards up to a length of 190 mm. The 58 mm deeper hood at the rear covers a backplane that provides a choice of two PCI™

slots, two PCI Express® slots or one PCI™ and one PCI Express® slot. Card holders ensure the secure fixation of large cards.

Advantage at the very core: the Beckhoff Industrial PCs

Beckhoff is a pioneer in PC-based automation technology and has been developing and producing its own PC hardware since

1986. The technology know-how that has grown over the past decades is incorporated today into all Beckhoff Industrial PCs.

Their principle feature is the use of state-of-the-art components and processors of the highest performance class. Combined

with a high in-house production depth, including proprietary motherboard production, long-term component availability,

extremely flexible configuration and customer-specific adaptations, Beckhoff presents itself today as one of the world's

leading Industrial PC manufacturers.
