Beckhoff C6515-0060 | Fanless built-in Industrial PC

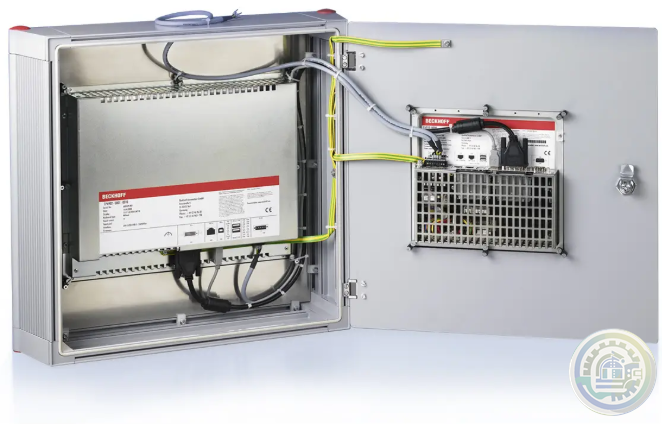

The C65xx Industrial PC series is designed to be installed in the panels of the control cabinet or in the rear panel of a control

housing or console housing. The heat sink of the Industrial PC is fed to the outside through a suitable cut-out in the control

cabinet or housing panel. Power dissipation from the processor and chipset takes place directly to ambient. Integrated seals

provide for an IP65 closure. This enables high thermal stability and at the same time fanless operation. Industrial PCs of type

C65xx can hence be constructed completely without rotating parts.

Industrial design

If the C65xx built-in PC is combined with a Beckhoff Control Panel, the result is a fanless Panel PC that enables operation up

to an ambient temperature of 45°C. The compact housing is equipped with a 3½-inch motherboard for Intel® Celeron® or

Core™ i3/i5/i7 of the latest generation. All of the PC’s connectors are located on the top side of the housing.

Maximum data availability and data security

The PCs of the C65xx series are supplied with an integrated power supply unit with 24 V DC input voltage, optionally with

integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail close to

the PC.

Scalable performance

Industrial PCs from this series, combined with the Beckhoff Control Panels as an operating unit, produce a powerful control

platform for machine construction and plant engineering – in particular with the TwinCAT automation software running on

Windows 10 IoT Enterprise.

Central EtherCAT controller

Due to the two independent Ethernet interfaces, the C6515 and C6525 Industrial PCs are ideally suited for use as the compact

central unit of an EtherCAT controller. Two hard disks, two SSDs or two CFast cards can be mirrored with the on-board SATA

RAID 1 controller. If a RAID drive fails, the system continues to operate. The defective data carrier can be replaced while

operation continues and the mirroring can be repeated.
