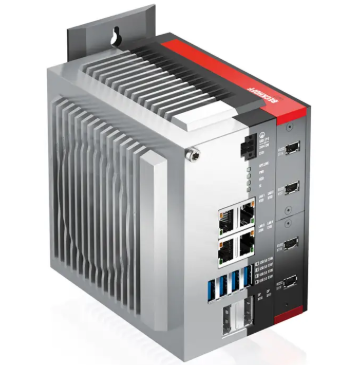

Beckhoff C6032-0080 | Ultra-compact Industrial PC

With the C6032. Beckhoff is extending its range of ultra-compact Industrial PCs by a modular variant with scalable interfaces

and functional extensions. Whether for complex axis control, elaborate HMI applications, extremely short cycle times or the

handling of large volumes of data: through the integration of Intel® Core™ i processors of the highest performance class, the

C6032 is suitable for virtually any automation and visualization task. The basis for this is the full integration and compatibility

of TwinCAT and EtherCAT.

Such high computing power in such a small size is previously unattained in the industrial environment. Due to the large

variety of scalable processors, the C6032 can be matched perfectly to the respective application.

Flexible mounting

In particular the wide variety of mounting options for the rear panel of the control cabinet or the DIN rail should be

highlighted with this Industrial PC series. The connection level can be freely oriented, i.e. adapted to possibly specified cable

layouts. Due to their maximum flexibility, the PCs fit in any niche in the control cabinet, however small.

Price-optimized

Due to the optimized housing and manufacturing concept, all Industrial PCs from the C60xx series are cost-optimized and are

often less expensive in direct comparison with other series in the Industrial PC product area without restrictions in industrial

compatibility, quality or durability.

All-in-one motherboard

The basic concept of the series always provides for an all-in-one motherboard developed and self-manufactured by Beckhoff.

The single-board PCs are characterized by further improved robustness and durability. Modular, functional extensions in the

form of a second board level can be integrated in every motherboard via an internal plug connector.
