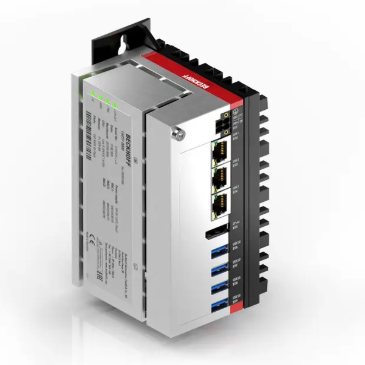

Beckhoff C6027-0010 | Fanless ultra-compact Industrial PC

The C6027 ultra-compact Industrial PC is designed as a fanless device and offers the high Intel® Core™ i computing power

despite its small dimensions of 82 x 127 x 69 mm. The Intel® Core™ i U processors with up to four processor cores form the

basis for this, because despite their Core™ i properties their power consumption is much lower compared with the other

processors from the series.

With the C6027. Beckhoff is expanding its range of ultra-compact Industrial PCs to include a modular version with scalable

interface expansions and a 1-second UPS to secure persistent data.

Due to its extremely compact size, the versatile and flexible mounting options and the impressive computing power, it fits

into virtually any control cabinet and machine concept.

Apart from use for a wide range of automation tasks, the C6027 is mainly suitable for use as an IoT gateway, or as an edge

device. The basis for this is the full integration and compatibility of TwinCAT and EtherCAT.

Flexible mounting

In particular the wide variety of mounting options for the rear panel of the control cabinet or the DIN rail should be

highlighted with this Industrial PC series. The connection level can be freely oriented, i.e. adapted to possibly specified cable

layouts. Due to their maximum flexibility, the PCs fit in any niche in the control cabinet, however small.

Price-optimized

Due to the optimized housing and manufacturing concept, all Industrial PCs from the C60xx series are cost-optimized and are

often less expensive in direct comparison with other series in the Industrial PC product area without restrictions in industrial

compatibility, quality or durability.
