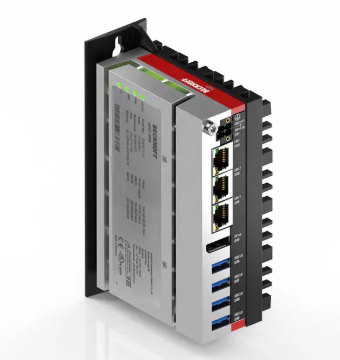

Beckhoff C6025-0010 | Fanless ultra-compact Industrial PC

The C6025 ultra-compact Industrial PC is designed as a fanless device and offers high computing power despite its small

dimensions of 82 x 127 x 50 mm. Depending on the configuration, the Intel Atom or Intel® Core™ i U processors with up to

four processor cores form the basis for this, because despite their Core™ i properties their power consumption is much lower

compared with the other processors from the series.

Due to its extremely compact size, the versatile and flexible mounting options and the impressive computing power, it fits

into virtually any control cabinet and machine concept.

Apart from use for a wide range of automation tasks, the C6025 is mainly suitable for use as an IoT gateway, or as an edge

device. The basis for this is the full integration and compatibility of TwinCAT and EtherCAT.

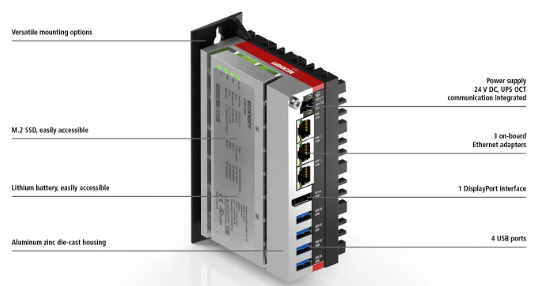

Flexible mounting

In particular the wide variety of mounting options for the rear panel of the control cabinet or the DIN rail should be

highlighted with this Industrial PC series. The connection level can be freely oriented, i.e. adapted to possibly specified cable

layouts. Due to their maximum flexibility, the PCs fit in any niche in the control cabinet, however small.

Price-optimized

Due to the optimized housing and manufacturing concept, all Industrial PCs from the C60xx series are cost-optimized and are

often less expensive in direct comparison with other series in the Industrial PC product area without restrictions in industrial

compatibility, quality or durability.

All-in-one motherboard

The basic concept of the series always provides for an all-in-one motherboard developed and self-manufactured by Beckhoff.

The single-board PCs are characterized by further improved robustness and durability. Modular, functional extensions in the

form of a second board level can be integrated in every motherboard via an internal plug connector.
