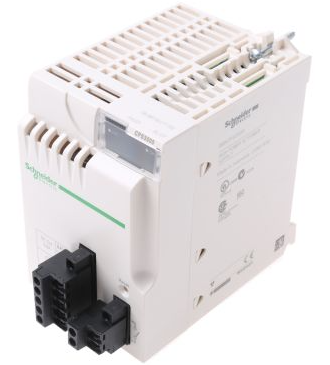

Square D BMXCPS3500 Plc Power Supply Module

This product is part of the Modicon X80 range, a common platform of modules

for Modicon M580 and M340 Programmable Automation Controllers (PAC).

This power supply module has a primary voltage of 100V to 240V AC.

It is a power supply module with a secondary power of 40W at 24V DC,

a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W.

This product is robust, high quality and based on the latest innovative technology.

It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective

earth for electrical connection.

Advanced diagnostics available via networks are temperature sensing, redundancy test,

uptime duration, redundancy information and remaining lifetime.

It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications.

This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL.

It meets EN 61131-2. EN 61000-6-4.

EN 61000-6-2 and EN 61010-2-201 standards.

This product is compatible with all backplane.

Modicon X80 consists in a compatible modules common platform that reduce maintenance

and training costs with same spare parts in stock, and unique training for different Programmable

Automation Controllers (PAC).
