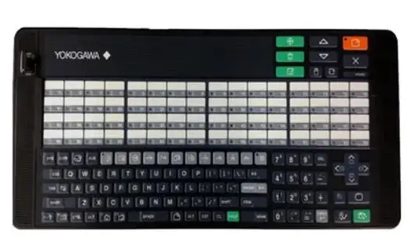

Yokogawa AIP830-001 AIP830 Operation Keyboard

 GENERAL

This document describes the hardware specifications of AIP830 Operation Keyboard for Single-loop Operation for

Desktop Type HIS.

It contains an independent USB speaker (a sound function) other than buzzing alarms (buzzer sounds).

An AIP830 keyboard can be used per one Desktop Type HIS.

 STANDARD SPECIFICATIONS

For installation specifications and environmental conditions, which are common to the systems, refer to the GS

“System Overview” (GS 33J01A10-01EN).

• Type: Flat keyboard (Sound Function: USB Speaker)

• PC Interface:

Interface Connector: USB A type x 2 (*1)

Conformable USB standard

Operation Keyboard Function : USB 2.0 (Full-speed, Bus-powered)

Sound Function : USB 1.1 (Full-speed, Bus-powered)

• Input Voltage: 5 V±5 % (Supplied from USB Port of PC)

• Maximum Consumption Current: 1 A

• Weight: Approx. 2.0kg (Without VESA Bracket), Approx. 2.5 kg (With VESA Braceket) (*2)

• Chassis Color: Black (Equivalent to Munsell No. N1.5)

• AIP830 belongs to IEC 61010-1 installation category Class I

(A device not directly connected with the main power supply).

• Operating Environment

Ambient temperature:

5 to 40 °C (for normal operaiton)

-20 to 60 °C (in storage and transportation)

Ambient humidity:

20 to 80 %RH (Non-condensing)

*1: Both connectors must always be connected directly to a computer.

*2: AIP830 with VESA Bracket must be mounted where it holds at least 10 kg of weight.
