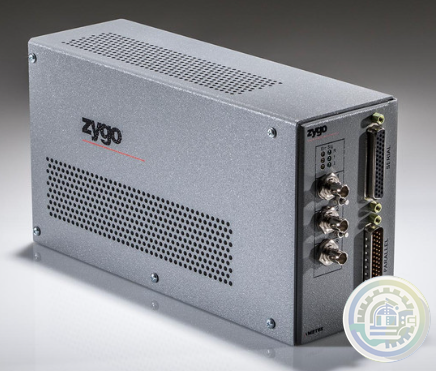

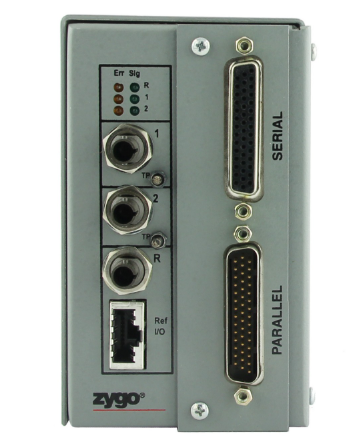

Zygo 8010-0105-02 ZMI-501 Channel Isolation Board

Optimize efficiency by using your ZYGO optical profiler right on the shop floor.

Now you can meet the most rigorous standards for precision metrology under

challenging environmental conditions. Our Guardian™ enclosures isolate the

metrology core from the surrounding environment, so you get optimal performance

when and where you need it. Designed and built by ZYGO exclusively for our optical

profilers, Guardian™ enclosures are built to perform and last.

Ergonomic Design

The system is designed to be a self-contained unit, which can be operated from standing

or seated positions. All user interface peripherals can be positioned and adjusted.

A large front-side opening makes the task of loading and unloading test parts and fixtures

simple and efficient. The unit's interior lighting conveniently illuminates the work area

as well. For serviceability, access panels are also provided around the unit.

Durable, ergonomic and compact, the Guardian™ industrial enclosure for ZYGO 3D Optical

Profilers provides protection from harsh environments, while maintaining performance and

functionality.

Maximize ROI

The Nexview™ 650 has been designed and built to ensure that the system

provides value for years to come.  With a metrology area that accommodates

lateral dimensions up to 650 x 650 mm and sample load of > 100 kg,

a vertical range of 150 mm, and options for a fully enclosed, or partially

enclosed system, the Nexview™ 650 provides maximum flexibility for large

samples that require precision 3D optical profiling.

For example. The system accommodates:

Any of today's standard PCB substrate panel sizes

Custom defined sample holders for flexible sheets, etc. which can be deployed

with little concern for their mass on the high load Y stage Large, high mass

injection molding plates that benefit from precise non-contact inspection to

minimize potential precision surface damage Customized chucks and sample

holders can be designed or customer supplied to adapt the system for smaller

panels or even singulated substrates to maximize application flexibility.

And the system's integrated recipe-driven automation software enables

hands-free metrology of multiple features on each panel, all in a single

workstation, reducing production time and increasing process knowledge.

The Nexview™ 650 metrology system is an inspection tool for automated

measurement of injection molding tooling, PCBs, glass panels and other

samples requiring an extended work volume up to 650 x 650 mm.

It provides 2D & 3D measurements of a variety of surface features with

sub-nanometer vertical precision and sub-micron lateral precision.
