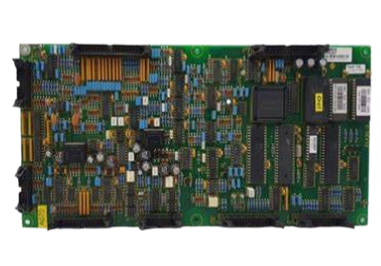

GUTOR 0P6257 Industrial-Grade Power Component

Gutor PDW is an industrial online double conversion three-phase UPS

system with thyristor-controlled rectifier and IGBT-PWM inverter

designed to secure the critical applications in harsh environment.

Designed for Harsh Environments

• Transformer base provides full galvanic

isolation to prevent electric shock and

suppress harmful electrical noise

• Robust industrial enclosure up to IP42/NEMA 2*

•  Seismic design for peak spectral acceleration up to 1.0 g*

•  Operation temperature up to 55°C

•  Printed circuit boards have conformalcoating to protect against

moisture, dust,chemicals, and temperature extremes

•  Tinned copper bars for harsh environment are available as an option

Adaptable and qualified design

• Extensive range of input and output voltage

•  The rectifier is sized to simultaneously

supply 100% load and boost charge the

battery

•  Strong chargers support various battery

types and address long backup time

Highest Reliability

• High Mean Time Between Failures (MTBF)

•  Long product lifetime with minimal servicing

required

•  Parallel or redundant capable to increase

availability

•  Its controller firmware and hardware are

compliant with IEC 60880 for NPP (Nuclear

Power Plant) applications

•  Independent System Surveillance (ISS)

provides a health supervision of all the

critical components to prevent the system

from freezing and shutdown

Smart communication

• Display with 7 languages

• Relay board, 16 fail-safe NO/NC contacts

•  A wide communication protocol allows Gutor

PDW to be seamlessly integrated into your

monitoring system– Freely programmable alarms and meters

– Communication via modbus, TCP / IP,IEC 61850. RS485

– Web interface for remote monitoring– Gutor PDW supports

EcoStruxure

•  Cybersecurity according to IEC62443 to meet

requirements from GPDR and California law SB-327

GUTOR 0P6257 PCA SDC CONTROLLER BOARD
