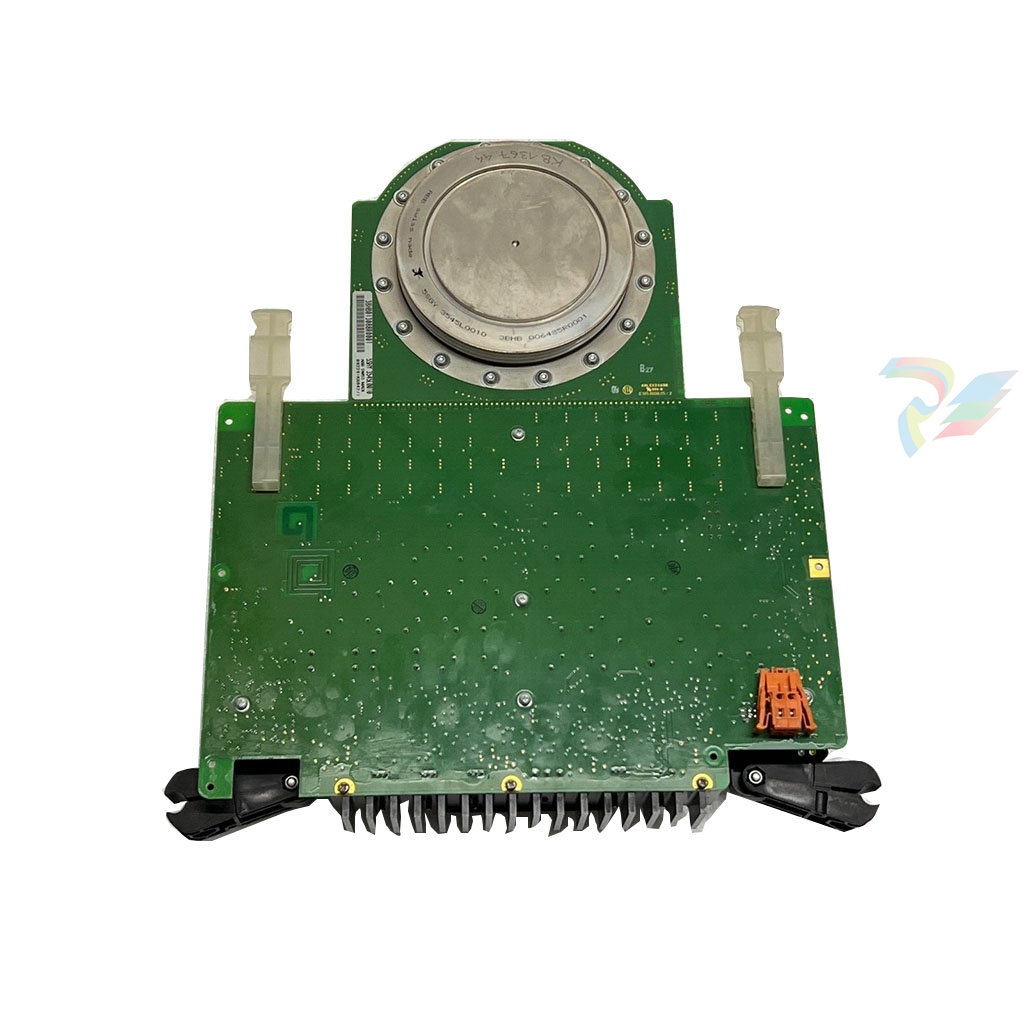

ABB 5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101 IGCT Module

SYMAP® automatically collects and stores all activated events with their

number, title, appearing and disappearing status and a time stamp. A

maximum of 5.000 events can be stored. In case of overflow, overwriting

follows the FIFO principle. The event history can be transferred to a PC

and evaluated by a PC tool. Regardless of power supply, the data store

is permanent.

Data recorder (optional)

The data recorder can log analog inputs, digital inputs, and digital out

puts. The recorder has the following settings:

•  number of samples (6-72)

•  recording period (5-60 sec)

•  pre-trigger (0-100%)

•  trigger event (start for recorder)

•  trigger event (stop for recorder)

Analog input for measurement

SYMAP® provides inputs for analog sensors at the rear of the device. If

terminal plugs for the CTs are disconnected, the circuits will be linked

automatically so there is no disconnection in the CT circuit loops.

A total of 17 analog inputs for current and voltage transformers are used

for protection functions. The following list shows possible connections

for current transformers (CT) and potential transformers (PT):

•  3 x CT inputs for feeder current

•  1 x CT input for ground current

•  3 x PT inputs for feeder voltage

•  3 x PT inputs for 1st bus bar voltage

•  3 x PT inputs for 2nd bus bar voltage

•  1 x PT input for ground voltage
