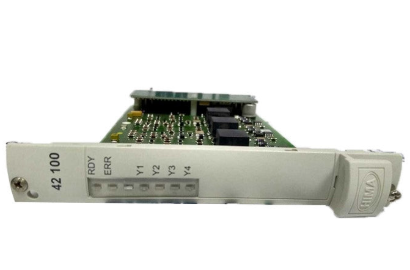

HIMA 42 100 Logical Function Module for Safety Systems
❤ Add to collection

HIMA 42 100 Logical Function Module for Safety Systems

+86-18144100983
kongjiangauto@163.com
wind, petroleum, chemical, natural gas, Marine, mining, aviation, electronics, steel, nuclear power, electric power, coking, air separation and so on
PLC, DCS, servo, analog, Ethernet, digital, redundant module, tension system, excitation, generator management, human-machine interface, detection card, sensor, AC drive, etc
U.S.＄9477.00
U.S.＄5727.00
Weight：3.100KG
Quantity：
(Inventory: 6)
Buy now
Add to cart
Product parameters
  • Tell:+86-18144100983
  • email:kongjiangauto@163.com
  • Application:wind/ petroleum/ chemical/ natural gas/ Marine/ mining/ aviation/ electronics/ steel/ nuclear power/ electric power/ coking/ air separation and so on
  • Series:PLC/ DCS/ servo/ analog/ Ethernet/ digital/ redundant module/ tension system/ excitation/ generator management/ human-machine interface/ detection card/ sensor/ AC drive/ etc
Feature



Each COM module forms a functional unit with the X-CB 001 02 connector board. Note that the

connector board must be separately purchased.

The fieldbus submodules are optional and must be mounted by the manufacturer. The fieldbus

submodule is selected when ordering the controller using the part number. Additionally, the

protocols used must be activated.

Scope of Delivery

The module must be installed on a suitable connector board to be able to operate. If a FTA

is used, a system cable is required to connect the connector board to the FTA. Connector

boards, system cables and FTAs are not included within the scope of delivery.

The connector boards are described in Chapter 3.6. the system cables are described in

Chapter 3.7. The FTAs are described in own manuals.

The new central modules support the various I/O modules of the previous generation.

The combination of the reliable HIQuad I/O modules and the new central module

has been named HIQuad X. This guarantees maximum compatibility for field installation.

This guarantees maximum compatibility and minimum modernisation effort in field installations.

As HIQuad X is now available, the H41q/H51q central modules have entered

the replacement phase of the HIMA product life cycle.

The H41q/H51q central modules will move to the legacy phase in 2020.

The legacy phase is expected to last 10 years and will be fully serviced.

The I/O levels will remain unchanged and will continue to be used in HIQuad X.

HIQuad X completes our intelligent security platform.

Safety Function

The module evaluates the digital input signals and provides them to the user program.

The safety function is performed in accordance with SIL 3.

Reaction in the Event of a Fault

If a fault occurs, the module adopts the safe state and the assigned input variables transmit

the initial value (default value = 0) to the user program.

The initial values must be set to 0 to ensure that the input variables transmit the value 0 to

the user program if a fault occurs.

The module activates the Error LED on the front plate.
