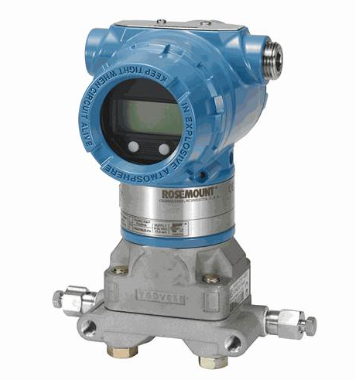

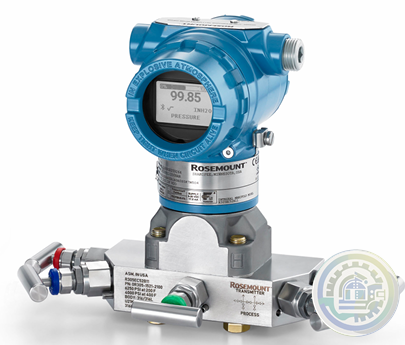

Emerson Rosemount 3051C Coplanar Pressure Transmitters

 Rosemount 3051C Coplanar Pressure Transmitters are the

 industry standard for differential, gage, and absolute pressure

 measurement. The coplanar platform enables seamless

 integration with manifolds, flow, and level solutions.

 ■ Loop Integrity and Plugged Impulse Line Diagnostics detect

 issues that might compromise the integrity of the output

 signal (code DA1).

 ■ Bluetooth® Connectivity enables efficient, reliable, and safe

 configuration and maintenance (code BLE).

 ■ Back-lit Graphical Display with Local Language Capability

 (code M6).

 ■ Safety certification and proof testing (code QT and T9).

Redundant I/O cards are available for critical applications.

The same card can be used in simplex or redundant

applications. When installed on a two-wide redundant terminal

block, the cards are recognized as a redundant pair by the

controller. The controller scans each card and determines which

card is acting as the active interface. When a fault is detected,

the system automatically switches to the standby I/O card.

DeltaV control modules reference simplex and redundant

I/O channels identically and there is no special configuration

required to take advantage of redundancy.

Reduced installation time and expense: The DeltaV system’s

S-series I/O interfaces are designed for quick assembly and

error proof maintenance. All carriers snap onto T-DIN rails and

interfaces snap into the I/O slots without the use of any tools.

Each I/O interface has a separate wiring terminal block,

which connects field wiring to the interface. The I/O card can

easily be removed without touching the I/O wiring on the

terminal block. Some I/O cards can also use the fused terminal

block, which is equipped with in-line fuses that can be pulled

to isolate power to the field circuit.

Traditional I/O interfaces have I/O function keys that allow

the terminal block to be set to receive a specific I/O card.

These keys ensure that the correct I/O card is always plugged

into the corresponding terminal block. The keys provide a

safety measure by preventing the wrong I/O card being

installed. It’s incredibly easy to use and gives you time to do more.
