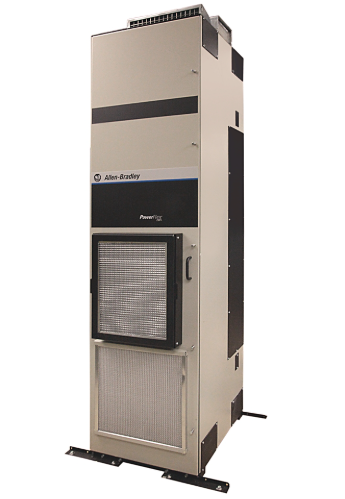

A-B 20GHAJC540JN0NNNNN PowerFlex Extra Tough 755 AC Drive

Modularity of FLEX I/O system provides choice of network and ease of expansion.

The wiring terminations are done almost entirely on the terminal

base. Terminal base termination selection includes screw-clamp, spring-clamp,

and cage-clamp to wire directly to 2-wire, 3-wire, or 4-wire

devices. Additional options of D-shell, knife disconnect, and fused terminal bases are also available.

Adjustable keyswitch helps prevent incorrect module insertion into a pre-configured terminal base.

Terminal bases can be exchanged without moving other bases in your system.

If desired, connect individual power supplies to each base to isolate modules.

Plug the I/O module into the terminal base to connect the I/O bus and field devices.

Remove and insert modules under power. No direct wiring to the module enables

you to change modules without disturbing field wiring or system power.

Mix and match I/O modules. There is a wide variety of digital, analog, and specialty modules.

Each FLEX I/O system contains at least one adapter, one terminal base, and one I/O module.

Features and Benefits Enhanced Performance and Troubleshooting

•  Synchronizes third-party devices to our integrated motion system

• Configure and program with Studio 5000 Logix Designer® Software

• In-cabinet installation mitigates the need to mount encoders on the machine

• Reduces wiring

Increased Flexibility

• Syncs with any axis of motion. It is not limited to nearby axis.

• Configurable output: quadrature or pulse train

• Dual Ethernet ports support a variety of network topologies

•  Provides role-based access control to routines and Add-On Instructions

The innovative snap fit bus system requires no tools and can help you to more easily

assemble and install. The Kinetix 5700 also incorporates Load Observer real-time tuning

technology, yielding high performance control while mitigating the need to tune most axes,

thus reducing your commissioning time. DSL Feedback ports support single cable technology

and helps simplify wiring with Allen-Bradley® Kinetix VP motors.
