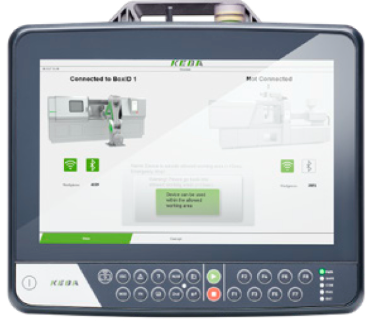

KEBA T155 Mobile HMI / Standard T155WL-D10-EN0-W10E

Safety certified wireless technology SIL3 Cat4 PLe

The need for mobile HMIs has expanded even further into large

area robotics, production lines, and intralogistics. KEBA is the

first to have a solution with robust wireless safety technology,

testing, and certification.

//  Bluetooth 4.2 Technology for proximity or remote safety pairing

HMI to machine base stations

//  Safety devices when paired to base station are enabled with a

range of up to 20 meters

//  Non safety data is communicated over WiFi whether safety

pairing is active or not. For example, HMI software data.

//   High speed safety response times of less than 100ms

//   Multiple base stations and HMIs can operate on the same

network to ensure safe operations in local areas

//   Optional: Configurable operation area monitoring ensures

the operator stays in range and provides warnings if operator

moves outside the area before operations are stopped

Environmental conditions

Operating temperature +5 °C … +55 °C

Storage temperature-40 °C … +70 °C

Relative air humidity 10 % to 95 % (non-condensing)

Vibration resistance / shock resistance Acc. to EN 61131-2
