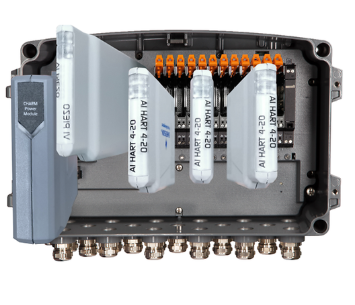

Emerson SE8701-PKG1 AMS Asset Monitor package Model

AMS Asset Monitor package, including: SE8701T01-IM Base with 1/2-NPT Cable

Gland Threading, (1) SE8701T02-IP Internal Power Supply, (12) SE4501 Std Terminal Blocks,

(1) KL4501X1-BA1 Address Plug #1 (1) KL4502X1-DA1 Address Plug Terminal Block

The DeltaV™ S-series hardware takes the proven DeltaV

hardware to a new level of robustness and ease of use.

Assembly is faster and power distribution is easier, with fewer

connections using the integrated field power distribution and

increased capacity of I/O bus power.

The modular design allows you to purchase only what you need

with the ability to expand online later simply by adding the

power/controller and I/O carriers are modular. Purchase only

what you need but be assured that as your system grows you

can add plug-and-play carriers—Easy!

Field Network Wiring

The field network is wired in a ring configuration from Port A around a loop to Port B of the

network master. Beginning at Port A, the network is wired to Port A of the first actuator and

then from Port B of the first actuator to Port A of the second actuator and so on until the

network returns from Port B of the last actuator to Port B of the network master. Networks

may have parallel wired (bus wired) actuators between series wired actuators. Always wire

parallel actuators to Port A and remove termination and bias. Do not connect more than 15

actuators in parallel between any two series connected actuators. Networks are polarized with

(+) and (-) symbols on all drawings. Proper operation requires that polarity be observed at all

connections. Connect the field networks to the Port A and B connectors on the NIM in the

network master as shown in Figure 9. The networks must be connected to Port A and Port B

of the valve actuators as shown in the wiring diagram of the XTE3000/ICON3000 IOM. Others

320B and RTS, please refer to their IOM for network wiring diagram. Controlinc 320B Quick

Start manual. Controlinc supports many different network topologies. This manual supports

only a single ring E>Net network topology that allows a combination of parallel (bus) and series

E>Net connections on the same network.
