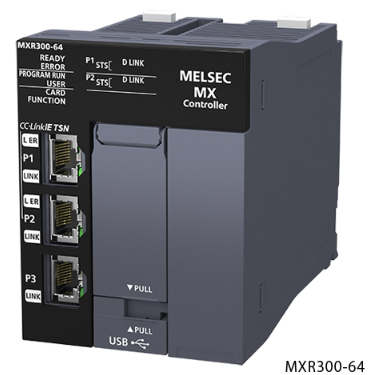

Mitsubishi MXR300-64 Programmable Automation Controllers MELSEC

Easier programming

Windows ® and VxWorks ® API, high-speed data communications between

OSs and access to various devices are easily realized and programming is also

easy. In addition, the module uses same functions as the C Controller such as

CCPU functions and MD functions, program assets of the C Controller can be utilized.

Hardware features

Inheriting highly robust features of the MELSEC programmable controllers,

the module can continuously operate in various environments for a long term.

In addition, consumable items are easily removed and replaced,

making maintenance easy.

● Offers versatile expandability, allowing you to utilize existing personal

computer boards and GPU boards.

● Meets international standards for temperature, vibration, shock, and

electromagnetic compatibility, making it suitable for a wide range of industries.

● Runs Windows ® operating system with a 10-year support lifecycle.

● Includes MELSOFT VIXIO AI-based visual inspection software (free 6-month

development license) *2 for labor-saving and efficient traceability in visual

inspection processes.

● Comprehensive support for the entire system built with Mitsubishi Electric

products.

*2. Included only with MI2532-W; not included with MI2332-W.

Windows ® and VxWorks ® pre-installed

The module can run two operating systems at the same time, VxWorks ®

with deterministic performance for device control and data collection and

Windows ® for displaying analysis results of collected data, allowing

superior processing according to OS. This feature allows one module to

realize device control and information processing which were previously    `

managed using a computer and dedicated device, reducing system

configuration cost and space for devices.

CC-Link IE Field Network realizes highly accurate device control

Control data and production data of devices can be communicated at 1 ms

via CC-Link IE Field Network, realizing highly accurate device control and

high-speed production data collection. The module is equipped with CC-Link

IE Field Network port and CC-Link IE Field Network Basic port which enable

easy connection with compatible products just by setting.

Digital I/O Modules

The ST Series Digital Input/Output modules come in various sizes and

capacities, with counts as low as 2 points and as high as 16 points.

These modules can be assembled in any order and mixed with analog

I/O modules as well. Each I/O module requires a corresponding base

module, which will be individually keyed to that type of I/O module

after the first use. This prevents spare modules to be placed in incorrect

position during maintenance such as Online Module Change.
