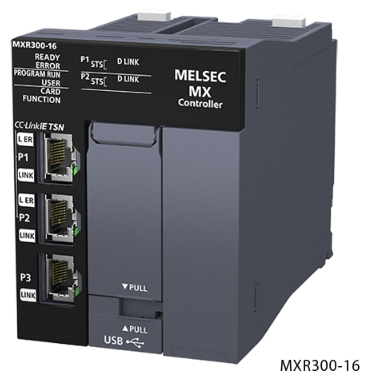

Mitsubishi MXR300-16 Programmable Automation Controllers MELSEC

Windows ® and VxWorks ® pre-installed

The module can run two operating systems at the same time, VxWorks ®

with deterministic performance for device control and data collection and

Windows ® for displaying analysis results of collected data, allowing

superior processing according to OS. This feature allows one module to

realize device control and information processing which were previously    `

managed using a computer and dedicated device, reducing system

configuration cost and space for devices.

CC-Link IE Field Network realizes highly accurate device control

Control data and production data of devices can be communicated at 1 ms

via CC-Link IE Field Network, realizing highly accurate device control and

high-speed production data collection. The module is equipped with CC-Link

IE Field Network port and CC-Link IE Field Network Basic port which enable

easy connection with compatible products just by setting.

Easier programming

Windows ® and VxWorks ® API, high-speed data communications between

OSs and access to various devices are easily realized and programming is also

easy. In addition, the module uses same functions as the C Controller such as

CCPU functions and MD functions, program assets of the C Controller can be utilized.

Hardware features

Inheriting highly robust features of the MELSEC programmable controllers,

the module can continuously operate in various environments for a long term.

In addition, consumable items are easily removed and replaced,

making maintenance easy.

● Offers versatile expandability, allowing you to utilize existing personal

computer boards and GPU boards.

● Meets international standards for temperature, vibration, shock, and

electromagnetic compatibility, making it suitable for a wide range of industries.

● Runs Windows ® operating system with a 10-year support lifecycle.

● Includes MELSOFT VIXIO AI-based visual inspection software (free 6-month

development license) *2 for labor-saving and efficient traceability in visual

inspection processes.

● Comprehensive support for the entire system built with Mitsubishi Electric

products.

*2. Included only with MI2532-W; not included with MI2332-W.

Digital I/O Modules

The ST Series Digital Input/Output modules come in various sizes and

capacities, with counts as low as 2 points and as high as 16 points.

These modules can be assembled in any order and mixed with analog

I/O modules as well. Each I/O module requires a corresponding base

module, which will be individually keyed to that type of I/O module

after the first use. This prevents spare modules to be placed in incorrect

position during maintenance such as Online Module Change.

The IR-S type infrared flame detector is an excellent high sensitivity type that

excels in “detection reliability”, “maintainability” and “economy”.

It supports boiler fuel diversity and low NOx (nitrogen oxide) operation.

By detecting the “average value” and “variation” of the infrared intensity of the

burner flame light transmitted to the infrared sensor (semiconductor element)

via a light guide (optical fiber), the detector can distinguish between the flame

and the light due to the furnace.

The detector distinguishes between flame and infrared light due to the red heat

of the furnace wall and detects flame fluctuations in the burner's ignition zone.

The IR-S type infrared flame detector has low brightness flame detection sensitivity

and a wide dynamic range, so it can be used for a variety of fuels such as natural

gas, heavy oil, and coal.
