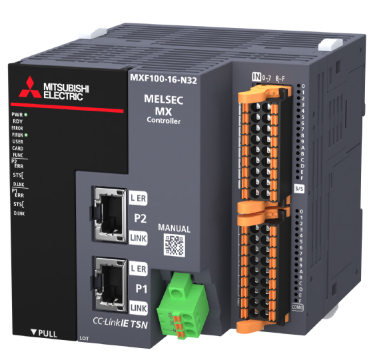

Mitsubishi MXF100-16-N32 MX-F model MELSEC MX Controller

Achieve multi-axis machine control with one controller

The MX Controller, equipped with a high-performance multi-core MPU as standard,

integrates sequence, motion, and network control, supporting up to 256 axes.

It supports mixed operation cycles, ensuring high-speed control even with multiple

axes. One controller delivers precise control of individual mechanisms and control

of the entire production line.

Achieving high-speed and high-accuracy motion control

Multi-core MPU

A high-speed multi-core MPU significantly increases processing performance,

including double-precision floating-point operations. Inter-core communication

allows multiple cores to perform different tasks simultaneously, enabling parallel

high-speed sequence, motion, and network control. Distributed control across

cores shortens the overall production cycle.

Core load can be monitored and adjusted for optimal machine control

The performance monitor visualizes the operation cycles and load status for each

core assigned to run the program.

Optimize performance by distributing load through mixed operation cycles based

on visualized load status.

Essential CC-Link IE TSN technology for large-scale equipment

High-speed and high-accuracy coordination with a wide range of devices

With a single MELSEC MX controller, you can build a system that combines real-time

control communication for factory automation equipment with information

communication for IT systems.

Easier programming

Windows ® and VxWorks ® API, high-speed data communications between

OSs and access to various devices are easily realized and programming is also

easy. In addition, the module uses same functions as the C Controller such as

CCPU functions and MD functions, program assets of the C Controller can be utilized.

Hardware features

Inheriting highly robust features of the MELSEC programmable controllers,

the module can continuously operate in various environments for a long term.

In addition, consumable items are easily removed and replaced,

making maintenance easy.

● Offers versatile expandability, allowing you to utilize existing personal

computer boards and GPU boards.

● Meets international standards for temperature, vibration, shock, and

electromagnetic compatibility, making it suitable for a wide range of industries.

● Runs Windows ® operating system with a 10-year support lifecycle.

● Includes MELSOFT VIXIO AI-based visual inspection software (free 6-month

development license) *2 for labor-saving and efficient traceability in visual

inspection processes.

● Comprehensive support for the entire system built with Mitsubishi Electric

products.

*2. Included only with MI2532-W; not included with MI2332-W.
