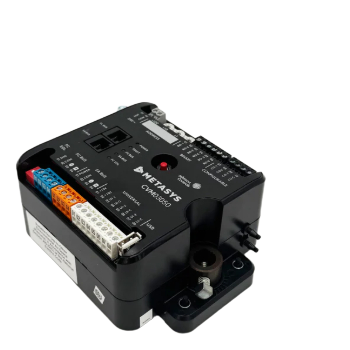

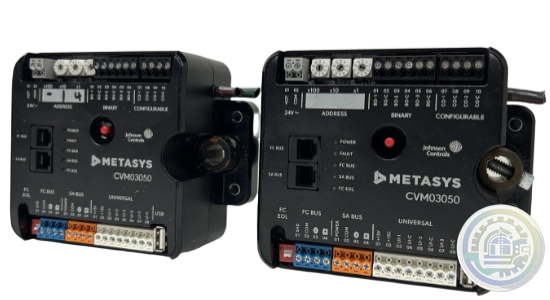

Johnson Controls M4-CVM03050-0 VAV Box Controller

The NS Series Network Sensors function directly with Metasys®

system Field Equipment Controllers (FECs), Metasys Network and

Control Engines (NCEs), Advanced Application Field Equipment

Controller (FACs), Metasys VAV Box Equipment Controllers (CVM)

and General Purpose Application Controllers (CGM), Input/Output

Modules (IOMs), VAV Modular Assembly (VMA16) Controllers, and

Facility Explorer™ FX-PC Series Programmable Controllers (FX

PCGs, FX-PCVs, and FX-PCXs). The sensors are also compatible with

Verasys® and Johnson Controls® Smart Equipment.

The NS Series Network Sensors monitor zone temperature, relative

humidity, carbon dioxide (CO2), motion, and local temperature setpoint

adjustments. The sensor transmits this data to a controller on the

Sensor/Actuator (SA) bus.

Some NS Series Network Sensors models include an onboard passive

infrared (PIR) occupancy sensor that detects motion to determine if a

space is occupied. This feature maximizes up to 30% energy savings

in high-energy usage environments such as schools, dormitories,

offices, hospitals, and hotels by adjusting the temperature of the space

based on the occupancy status. In addition, the PIR occupancy sensor

facilitates trending of floor space usage in these environments.

Some models of the NS Series Network Sensors include a touch

display to view zone temperature, RH, CO2, and adjust the zone

temperature setpoint and fan speed. These models have the capability

to set the default display to temperature, RH, or temperature setpoint.

On these display models the user can also choose between degrees

Fahrenheit (F) and degrees Celsius (C). To prevent tampering with the

sensor, display models also include a screen lockout feature.
