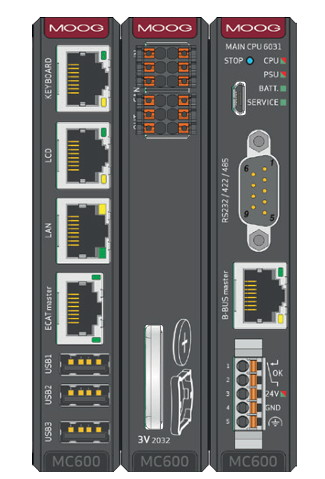

MOOG IMI220-6031A001 Main CPU + PSU + HMI controller + CAN

Overview

MC 600 Plus is the new MC 600 CPU Series based on a

quadcore SOC technology.

Each MC 600 Series application needs exactly one main

CPU module. It is not possible to use more than one main

CPU module in an application.

The main CPU module controls all other modules of the

application. The two main CPU modules have the same

functionality, including battery backup, wake-up function

and a license key connector for advanced algorithms.

The main CPU 6033 module comes with an additional

EtherCAT device connectivity.

The main CPU 6034 module comes with an additional

ProfiNET device connectivity.

Power Supply

Each of these modules has its own internal power supply

unit (PSU) that requires a nominal +24 VDC

input to produce

the logic voltages necessary for the other modules.

The external +24 VDC

power supply for the modules must

be combined with either a CPU module or a bus transceiver

module.

All modules monitor voltage, current, and temperature

or any other data from the power supply. The main CPU

modules have a wake-up function to start-up the power

supply. The power available from the modules limits the

number of modules to be used in an application.

Additional Information

For decentralized applications, additionally bus

transceiver modules are available, see section ““Bus

Transceiver Modules”.

I/O and temperature modules are connected to each of the

CPU modules via local bus, see sections ““I/O Modules” and

“Temperature Modules”.

For possible combinations of modules and application

samples, see section “Concepts”.
